BM2P109 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
PWM TYPE DC/DC CONVERTER IC INTEGRATED SWITCHING MOSFET FOR NON-ISOLATED TYPE
| Part | Voltage - Input (Min) [Min] | Topology | Current - Output | Voltage - Input (Max) [Max] | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Frequency - Switching | Supplier Device Package | Number of Outputs | Synchronous Rectifier | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Power - Output | Main Purpose | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 8 V | Buck | 850 µA | 10.81 V | 8-SOIC (0.173" 4.40mm Width) | Surface Mount | -40 °C | 105 °C | Positive | 100 kHz | 8-SOP | 1 | |||||||||||||

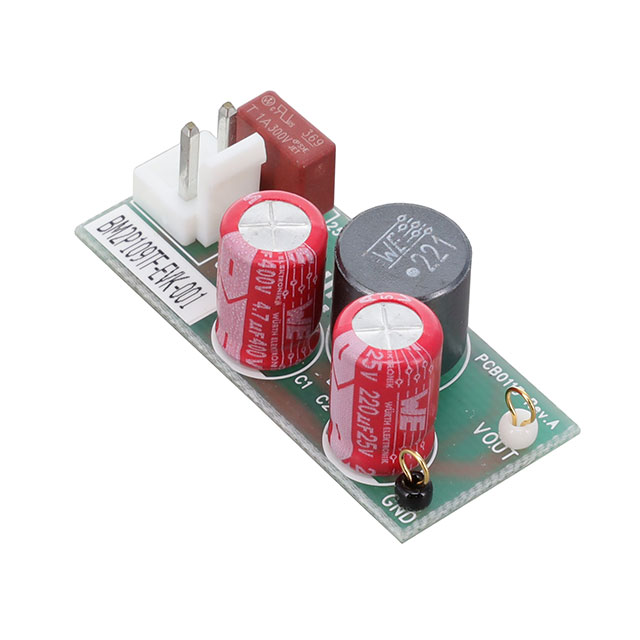

 Rohm Semiconductor | 0.2 A | 100 kHz | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | 2 W | AC/DC Non-Isolated | 10 V | 264 VAC | 90 VAC | Board(s) | Buck | BM2P109T |
