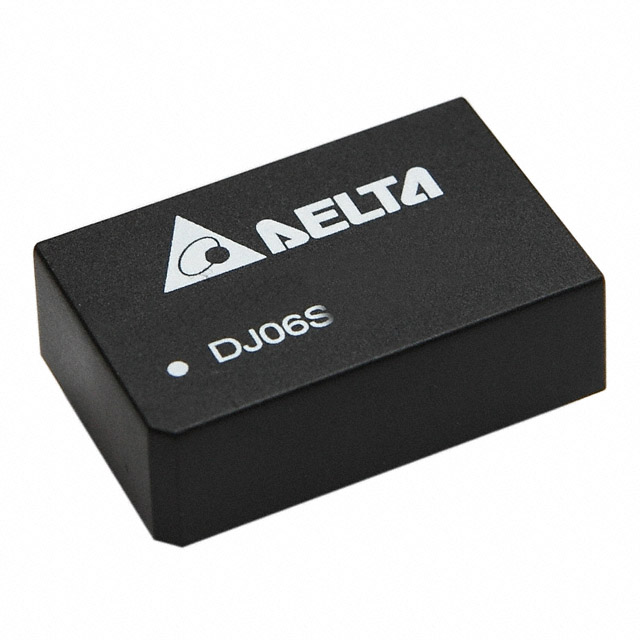

DJ06S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 12V 6W
| Part | Voltage - Input (Max) [Max] | Voltage - Isolation | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Applications | Voltage - Output 1 | Features | Mounting Type | Current - Output (Max) [Max] | Package / Case | Power (Watts) | Efficiency | Voltage - Input (Min) [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 36 V | 1.5 kV | 1 | 85 °C | -40 C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Medical | 12 V | OCP SCP UVLO | Through Hole | 500 mA | 24-DIP Module 8 Leads | 6 W | 84 % | 9 V | Isolated Module |
Delta Electronics | 36 V | 1.5 kV | 1 | 85 °C | -40 C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Medical | 5 V | OCP SCP UVLO | Through Hole | 1.2 A | 24-DIP Module 8 Leads | 6 W | 80 % | 9 V | Isolated Module |
