A-CCS 04 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

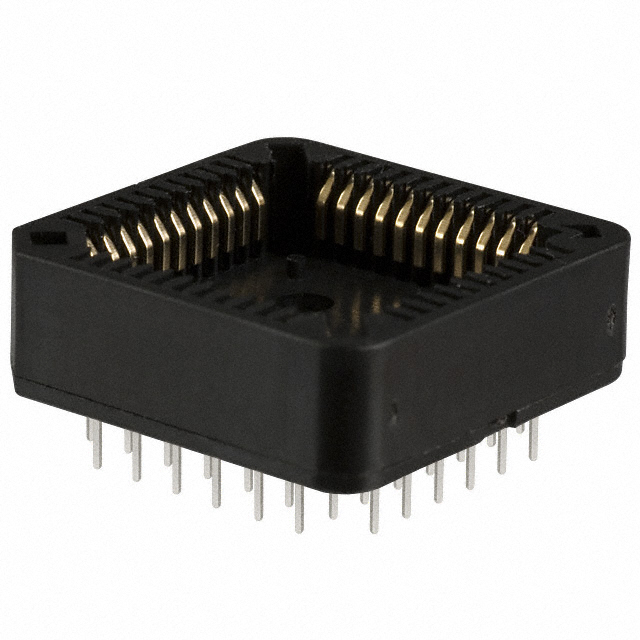

CONN SOCKET PLCC 44POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Material - Post | Mounting Type | Termination | Contact Finish - Mating | Housing Material | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Type | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | UL94 V-0 | 15 mOhm | 1 A | 0.132 " | 3.35 mm | Phosphor Bronze | Through Hole | Solder | Gold | Polybutylene Terephthalate (PBT) | Phosphor Bronze | -40 C | 105 ░C | Closed Frame | PLCC | 1.27 mm | 0.05 in | 0.1 in | 2.54 mm | 11 | 44 | 4 | Gold |
