LCD1000 Series
Manufacturer: Panduit Corp
Beta
⌘K
LUG TERMINAL, PAN-LUG SERIES, CRIMP, COMPRESSION LUG
| Part | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Finish | Terminal Style | Width - Outer Edges [x] | Width - Outer Edges [x] | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Color | Termination | Mounting Type | Insulation | Terminal Type | Wire Gauge | Wire Gauge | Diameter - Ring ID | Diameter - Ring ID | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

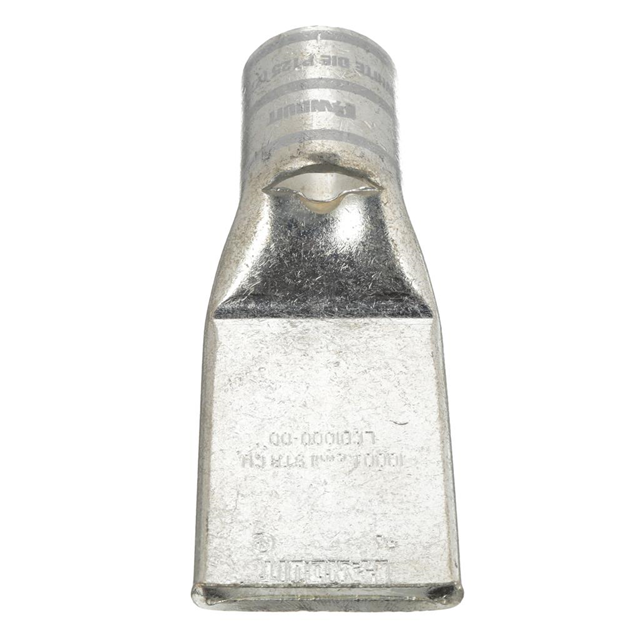

 Panduit Corp | 1.17 in | 29.72 mm | Copper | 38.1 mm | 1.5 in | Electro-Tin | No Stud Hole | 55.12 mm | 2.17 " | 0.32 " | 8.13 mm | 5.77 in | 146.56 mm | White | Barrel Crimp | Free Hanging (In-Line) | Non-Insulated | Rectangular Tongue | 1000 kcmil | 1000 MCM | |||

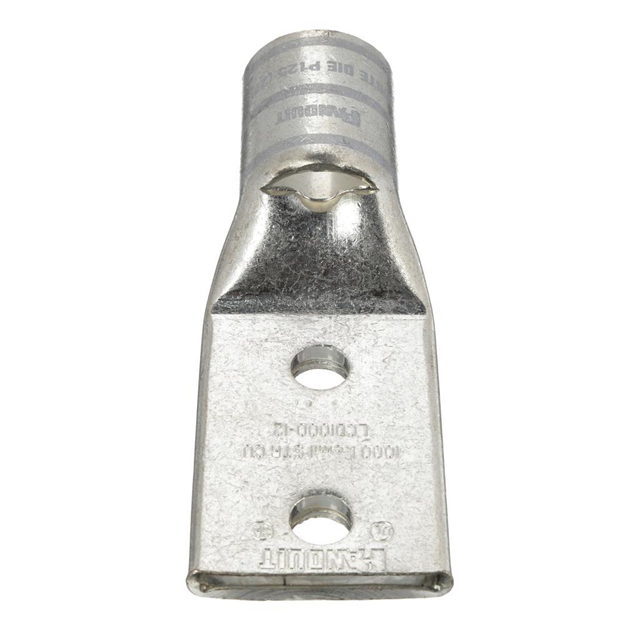

 Panduit Corp | 1.17 in | 29.72 mm | Copper | 38.1 mm | 1.5 in | Electro-Tin | Two Stud Holes | 55.12 mm | 2.17 " | 0.32 " | 8.13 mm | 5.77 in | 146.56 mm | White | Barrel Crimp | Free Hanging (In-Line) | Non-Insulated | Rectangular Tongue | 1000 kcmil | 1000 MCM | 13.46 mm | 0.53 in | 0.5 Stud |
