G80B0C-P Series
Manufacturer: ODU
Beta
⌘K

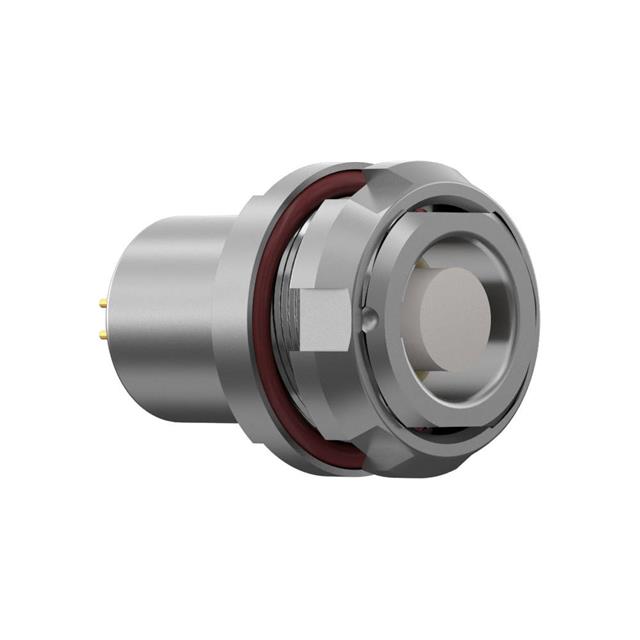

ODU MINI-SNAP RECEPT, STY 8, SZ
| Part | Applications | Color | Ingress Protection | Mounting Type | Number of Positions | Primary Material | Insert Material | Current Rating (Amps) | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shielding | Features | Fastening Type | Connector Type | Contact Material | Shell Finish | Orientation | Contact Finish - Mating | Voltage Rating | Shell Size - Insert [custom] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 4 | Metal | Polyetheretherketone (PEEK) | 7.5 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 300 VDC | 0 | ||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 5 | Metal | Polyetheretherketone (PEEK) | 6 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 366 V | 0 | ||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 7 | Metal | Polyetheretherketone (PEEK) | 4 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 300 VDC | 0 | ||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount Through Hole | 10 | Metal | Polyetheretherketone (PEEK) | 4 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 200 V | 0 | Solder | |
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 6 | Metal | Polyetheretherketone (PEEK) | 4 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 300 VDC | 0 | ||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 5 | Metal | Polyetheretherketone (PEEK) | 7.5 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 200 V | 0 | ||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount Through Hole | 4 | Metal | Polyetheretherketone (PEEK) | 6 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 300 VDC | 0 | Solder | |
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount Through Hole | 7 | Metal | Polyetheretherketone (PEEK) | 4 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 300 VDC | 0 | Solder | |
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | Metal | Polyetheretherketone (PEEK) | 7.5 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 400 V | 0 | |||
Industrial Medical Military Testing Equipment & Measurement | Silver | IP68 - Dust Tight Waterproof | Panel Mount | 10 | Metal | Polyetheretherketone (PEEK) | 4 A | Bulkhead - Front Side Nut | 120 °C | -40 C | Brass | Unshielded | Ground | Push-Pull | Receptacle Female Sockets | Brass | Chrome over Nickel | 0 | Gold | 200 V | 0 |
