PT6625 Series

Catalog

DC DC CONVERTER 5V 6A

Part	Type	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Applications	Features	Size / Dimension [y]	Size / Dimension [z]
Texas Instruments PT6625D	Non-Isolated PoL Module	85 %	1.71 "	10.7 mm	31 mm	0.42 in	43.4 mm	1.22 "	14-SIP Module	1	85 °C	-40 °C	5 V	16 V	9 V	Through Hole Right Angle	6 A	ITE (Commercial)

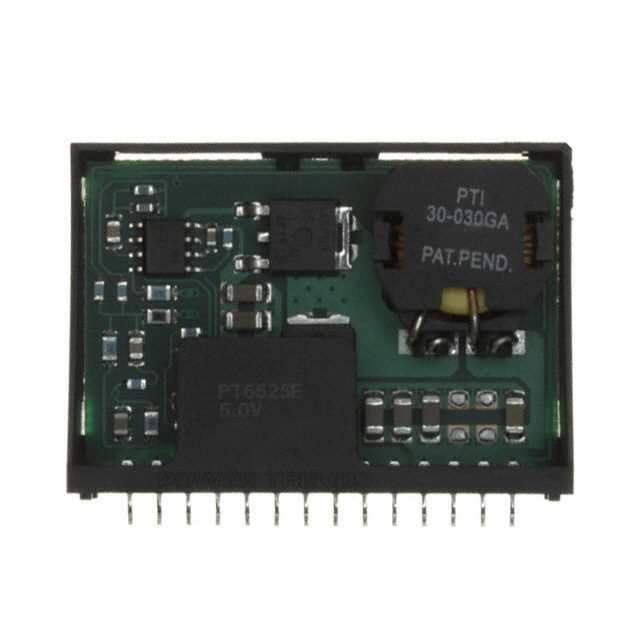

Texas Instruments PT6625E	Non-Isolated PoL Module	85 %	1.71 "	10.7 mm	31 mm	0.42 in	43.4 mm	1.22 "	14-SMD Module	1	85 °C	-40 °C	5 V	16 V	9 V	Surface Mount	6 A	ITE (Commercial)	OTP Remote On/Off
Texas Instruments PT6625B	Non-Isolated PoL Module	85 %	2.36 in			0.42 in	59.9 mm	1.22 "	14-SMD Module	1	85 °C	-40 °C	5 V	16 V	9 V	Surface Mount	6 A	ITE (Commercial)	OTP Remote On/Off	31 mm	10.7 mm
Texas Instruments PT6625P	Non-Isolated PoL Module	85 %	1.71 "			1.22 in	43.4 mm	0.42 "	14-SIP Module	1	85 °C	-40 °C	5 V	16 V	9 V	Through Hole	6 A	ITE (Commercial)		10.7 mm	31 mm
Texas Instruments PT6625R	Non-Isolated PoL Module	85 %	2.36 in			1.22 in	59.9 mm	0.42 "	14-SIP Module	1	85 °C	-40 °C	5 V	16 V	9 V	Through Hole	6 A	ITE (Commercial)		10.7 mm	31 mm
