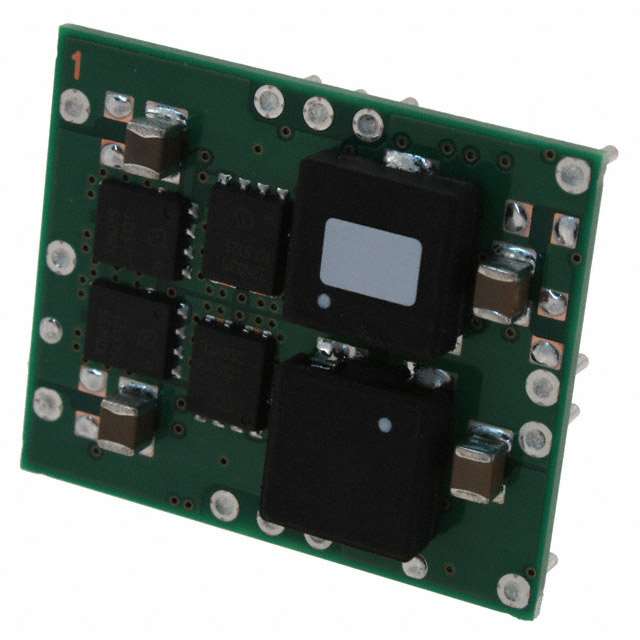

PTH12030 Series

Catalog

DC DC CONVERTER 1.2-5.5V 143W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Mounting Type	Applications
ARTESYN / Advanced Energy PTH12030WAD	143 W	13.8 V	94.5 %	1.2 V	5.5 V	13-DIP Module	85 °C	-40 C	10.2 V	1	Non-Isolated PoL Module	OTP Remote On/Off SCP UVLO	9 mm	0.35 "	28.5 mm	34.8 mm	1.12 in	1.37 in	26 A	Through Hole	ITE (Commercial)
