9463 Series
Manufacturer: Belden Inc.
Beta
⌘K

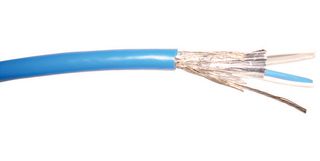

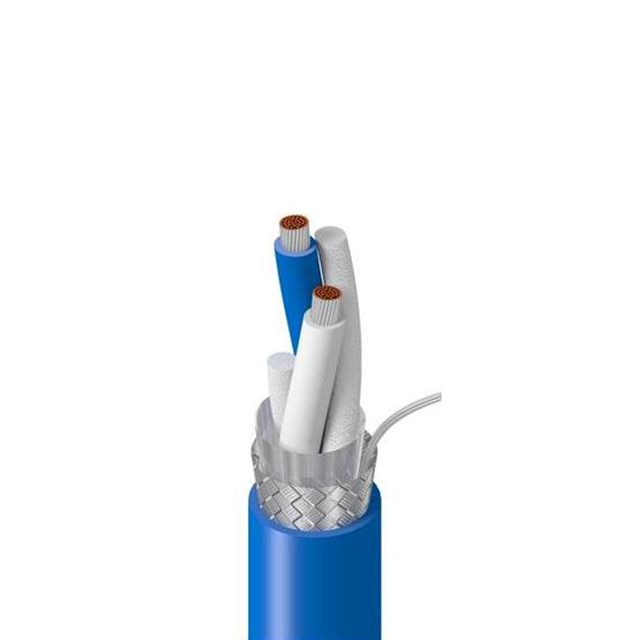

CABLE TWINAXIAL 20AWG
| Part | Conductor Material | Shield Coverage | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Length | Length | Shield Type | Impedance | Jacket (Insulation) Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Conductor Strand | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | 6000 ft | 1828.8 m | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Blue | 20 AWG | 7 Strands 28 AWG | ||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | 12000 ft | 3657.6 m | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Blue | 20 AWG | 7 Strands 28 AWG | ||
 Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial - Plenum | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | Blue | 20 AWG | 7 Strands 28 AWG | 152.4 m | 500 ft | |||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Orange | 20 AWG | 7 Strands 28 AWG | 304.8 m | 1000 ft | ||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | 6000 ft | 1828.8 m | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Orange | 20 AWG | 7 Strands 28 AWG | ||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Blue | 20 AWG | 7 Strands 28 AWG | 304.8 m | 1000 ft | ||
 Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial - Plenum | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | Blue | 20 AWG | 7 Strands 28 AWG | 304.8 m | 1000 ft | |||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Brown | 20 AWG | 7 Strands 28 AWG | 304.8 m | 1000 ft | ||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | 10000 ft | 3048 m | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Orange | 20 AWG | 7 Strands 28 AWG | ||
Belden Inc. | Copper Tinned | 55 % 100 % | Aluminum Copper Tinned | 1.98 mm | 0.078 in | 66 | 80 °C | -40 C | Twinaxial | 6000 ft | 1828.8 m | Braid Foil | 78 Ohms | Poly-Vinyl Chloride (PVC) | Drain Wire Oil Resistant UV Resistant | 0.238 " | 6.05 mm | Brown | 20 AWG | 7 Strands 28 AWG |
