GRPB031 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 3POS 1.27MM
| Part | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Shrouding | Overall Contact Length [x] | Overall Contact Length | Mounting Type | Contact Material | Contact Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Shape | Contact Finish - Mating | Material Flammability Rating | Insulation Material | Contact Finish Thickness - Mating | Connector Type | Contact Length - Mating | Contact Length - Mating | Style | Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

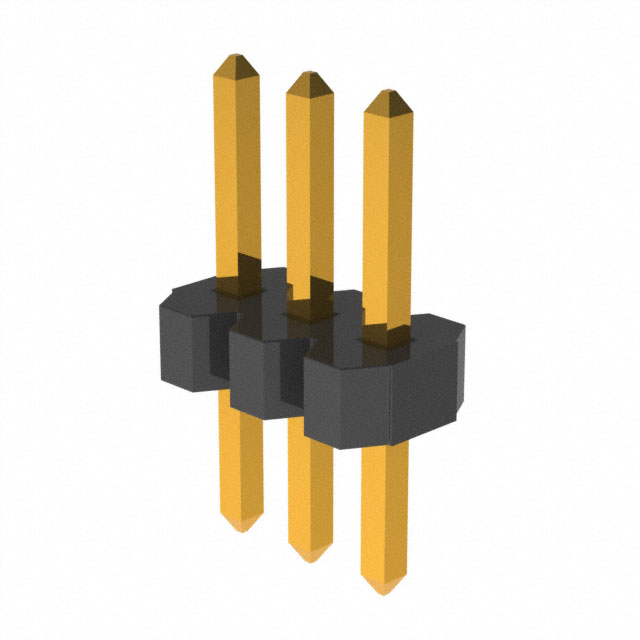

 Sullins Connector Solutions | All | 0.05 in | 1.27 mm | Unshrouded | 0.248 in | 6.3 mm | Through Hole | Brass | Male Pin | Gold | -40 °C | 105 ░C | 0.039 " | 1 mm | 1 | 0.091 in | 2.3 mm | Flash | Square | Gold | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Flash | Header | 3 mm | 0.118 in | Board to Board Cable | Solder | Push-Pull |

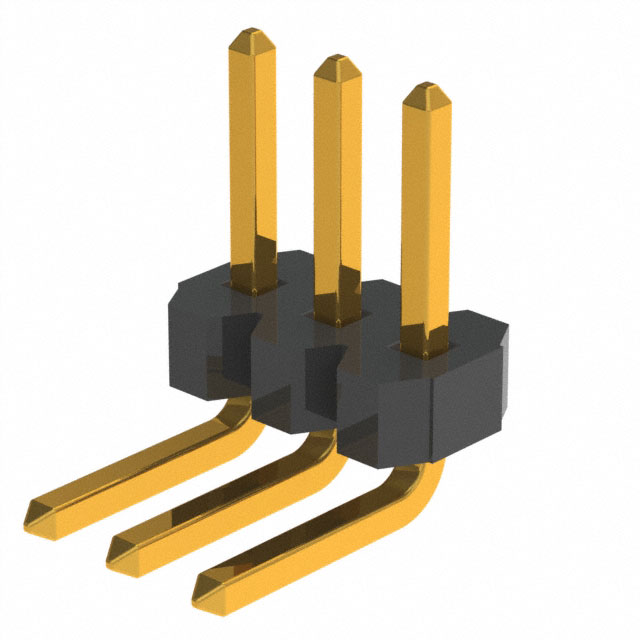

 Sullins Connector Solutions | All | 0.05 in | 1.27 mm | Unshrouded | Through Hole Right Angle | Brass | Male Pin | Gold | -40 °C | 105 ░C | 0.084 in | 2.14 mm | 1 | 0.098 in | 2.5 mm | Flash | Square | Gold | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Flash | Header | 3 mm | 0.118 in | Board to Board Cable | Solder | Push-Pull | ||

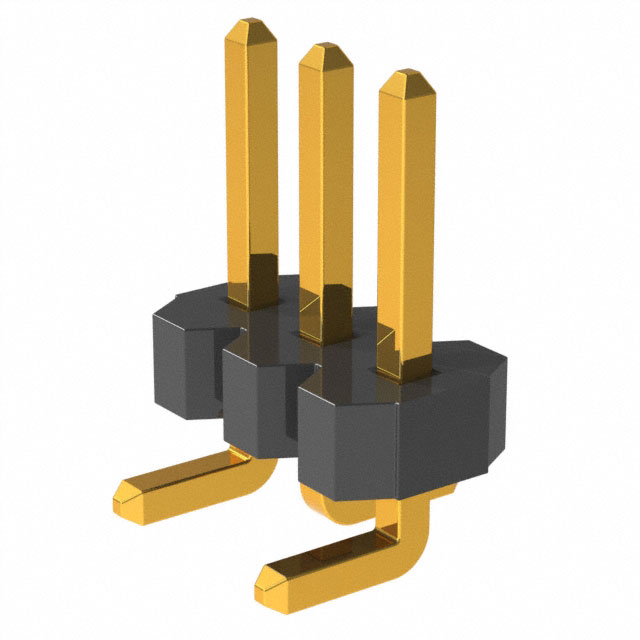

 Sullins Connector Solutions | All | 0.05 in | 1.27 mm | Unshrouded | Surface Mount | Brass | Male Pin | Gold | -40 °C | 105 ░C | 0.039 " | 1 mm | 1 | Flash | Square | Gold | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Flash | Header | 3 mm | 0.118 in | Board to Board Cable | Solder | Push-Pull | ||||

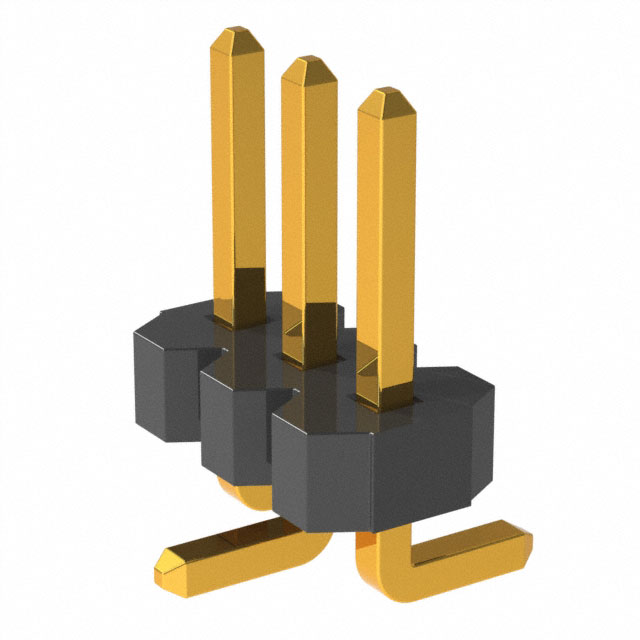

 Sullins Connector Solutions | All | 0.05 in | 1.27 mm | Unshrouded | Surface Mount | Brass | Male Pin | Gold | -40 °C | 105 ░C | 0.039 " | 1 mm | 1 | Flash | Square | Gold | UL94 V-0 | Nylon 9T Polyamide (PA9T) | Flash | Header | 3 mm | 0.118 in | Board to Board Cable | Solder | Push-Pull |
