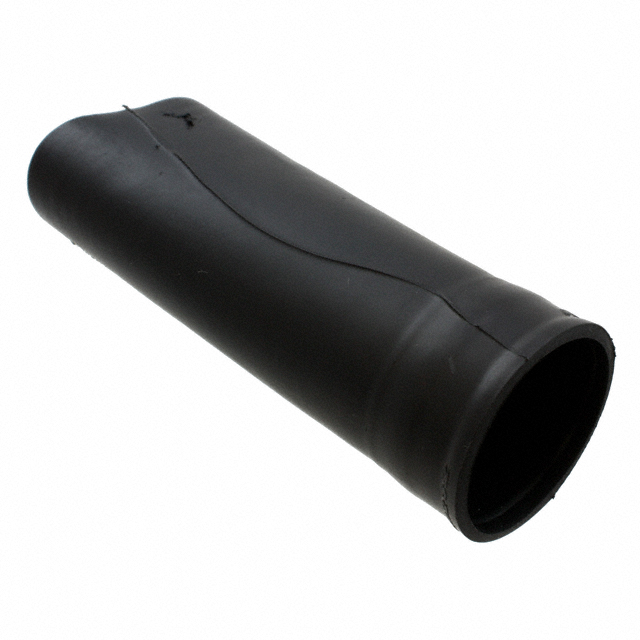

202D232 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ32 BLACK

Part	Features	Small Recovered Length	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Shell Size - Insert	Total Length Recovered	Total Length Recovered	Large Diameter Supplied	Large Diameter Supplied [diameter]	Material	Type	Color	Large Diameter Supplied [diameter]	Large Recovered Length
TE Connectivity Aerospace, Defense and Marine 202D232-25/42-0	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	112.8 mm	4.441 in	18.8 mm	0.74 in	0.61 in	15.49 mm	29.49 mm	1.161 in	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Elastomer Semi-Rigid Irradiated	Boot	Black
TE Connectivity Aerospace, Defense and Marine 202D232-25-0	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	112.8 mm	4.441 in	18.8 mm	0.74 in	0.61 in	15.49 mm	29.49 mm	1.161 in	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Elastomer Semi-Rigid Irradiated	Boot	Black
TE Connectivity Aerospace, Defense and Marine 202D232-12-32-0	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip Potting (Injection) Port Vent Port			18.8 mm	0.74 in	15.19 mm		18.21 mm	0.717 in	8.41 mm	0.331 "	32	3.5 in	88.9 mm		1.157 in	Fluoroelastomer (FKM) Flexible Irradiated	Boot	Black	29.39 mm	0.598 in
TE Connectivity Aerospace, Defense and Marine 202D232-3/180-0	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	112.8 mm	4.441 in	18.8 mm	0.74 in	0.61 in	15.49 mm	29.49 mm	1.161 in	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Polyolefin (PO) Semi-Rigid Irradiated	Boot	Black
TE Connectivity Aerospace, Defense and Marine 202D232-3-21-0	Flame Retardant Fluid Resistant Heat Resistant Lip Potting (Injection) Port Vent Port			18.8 mm	0.74 in	15.24 mm		29.46 mm	1.16 in	8.38 mm	0.33 "	32	1.62 in	41.15 mm		1.16 in	Polyolefin (PO) Semi-Rigid Irradiated	Boot	Black	29.46 mm	0.6 in
TE Connectivity Aerospace, Defense and Marine 202D232-4-61/42-0-CS5077	Adhesive Coating Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	112.8 mm	4.441 in	18.8 mm	0.74 in	12.19 mm		29.49 mm	1.161 in	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Polyolefin (PO) Flexible Irradiated	Boot	Black Red		0.48 in

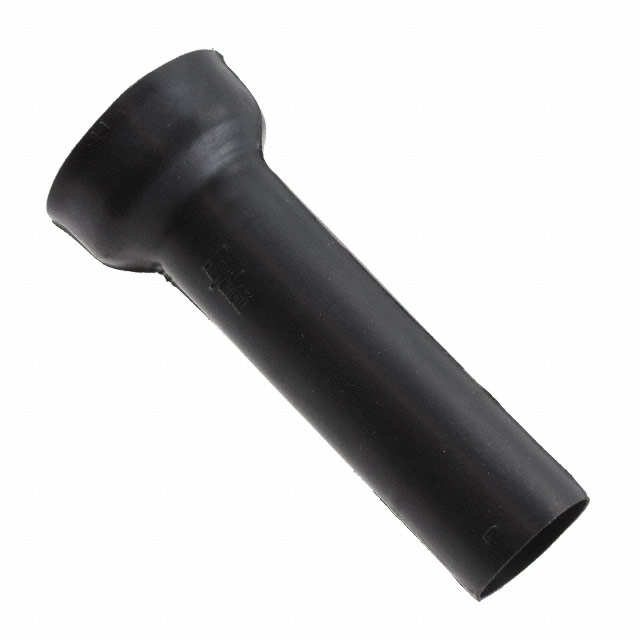

TE Connectivity Aerospace, Defense and Marine 202D232-12-0	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	112.8 mm	4.441 in	18.8 mm	0.74 in	0.61 in	15.49 mm	18.29 mm	0.72 "	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Fluoroelastomer (FKM) Flexible Irradiated	Boot	Black
TE Connectivity Aerospace, Defense and Marine 202D232-3-22/42-0	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	62.99 mm	2.48 in	18.8 mm	0.74 in	12.19 mm		29.49 mm	1.161 in	8.41 mm	0.331 "	32	3.5 in	88.9 mm	29.49 mm	1.161 in	Polyolefin (PO) Semi-Rigid Irradiated	Boot	Black		0.48 in
TE Connectivity Aerospace, Defense and Marine 202D232-12-22-0	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	62.99 mm	2.48 in	18.8 mm	0.74 in	12.19 mm		18.29 mm	0.72 "	8.41 mm	0.331 "	32	3.5 in	88.9 mm	29.49 mm	1.161 in	Fluoroelastomer (FKM) Flexible Irradiated	Boot	Black		0.48 in

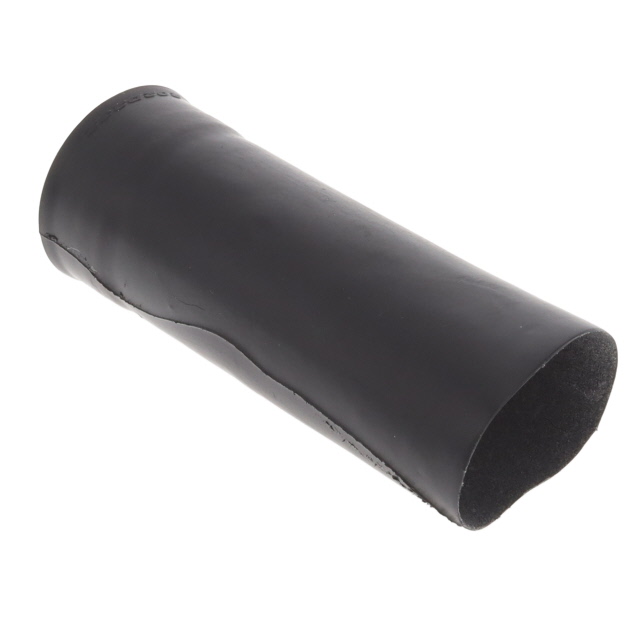

TE Connectivity Aerospace, Defense and Marine 202D232-25/225-0	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	112.8 mm	4.441 in	18.8 mm	0.74 in	0.61 in	15.49 mm	29.49 mm	1.161 in	8.41 mm	0.331 "	32	5.461 in	138.71 mm	29.49 mm	1.161 in	Elastomer Semi-Rigid Irradiated	Boot	Black
