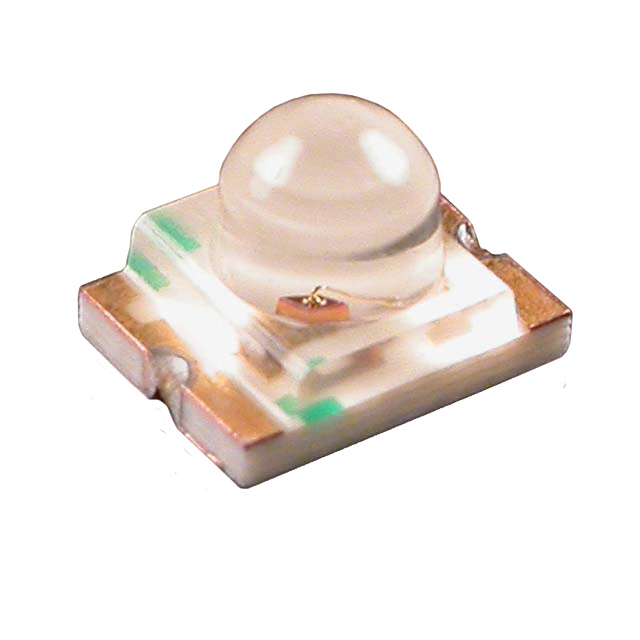

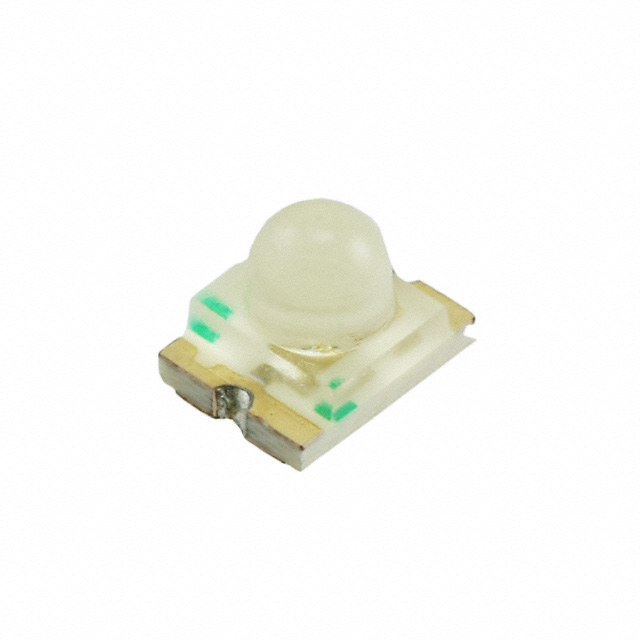

APD3224 Series

Catalog

LED BLUE CLEAR SMD

Part	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Test	Mounting Type	Color	Height (Max) [z]	Package / Case	Package / Case	Millicandela Rating	Lens Transparency	Wavelength - Dominant	Lens Style	Configuration	Supplier Device Package	Lens Color	Height (Max) [z]
Kingbright APD3224PBC/A-F01	1.8 mm Dia	3.2 V	468 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Blue	2.4 mm	1210	3225 Metric	380 mcd	Clear	470 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224SGC-F01	1.7 mm	2.2 V	565 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Green	2.4 mm	1210	3225 Metric	100 mcd	Clear	568 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224CGCK-F01	1.7 mm	2.1 V		3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Green	2.4 mm	1210	3225 Metric	600 mcd	Clear	570 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224SECK-F01	1.7 mm	2.1 V	610 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount		2.4 mm	1210	3225 Metric	1600 mcd	Clear	601 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224SYCK-F01	1.7 mm	2 V	590 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Yellow	2.4 mm	1210	3225 Metric	1300 mcd	Clear	590 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224ZGC-F01	1.7 mm	3.3 V	515 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Green	2.4 mm	1210	3225 Metric	3000 mcd	Clear	525 nm	Round with Domed Top	Standard	SMD	Colorless
Kingbright APD3224QBC/D-F01	1.7 mm	3.3 V	460 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Blue	2.4 mm	2-SMD No Lead		900 mcd	Clear	465 nm	Round with Domed Top	Standard	Chip LED	Colorless

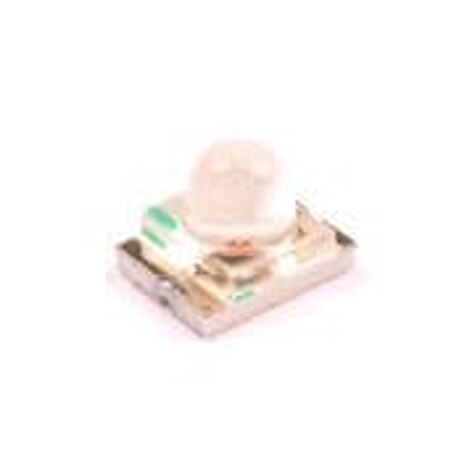

Kingbright APD3224EC-F01	1.7 mm	2 V	627 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Red	2.4 mm	1210	3225 Metric	60 mcd	Clear	617 nm	Round with Domed Top	Standard	SMD	Colorless

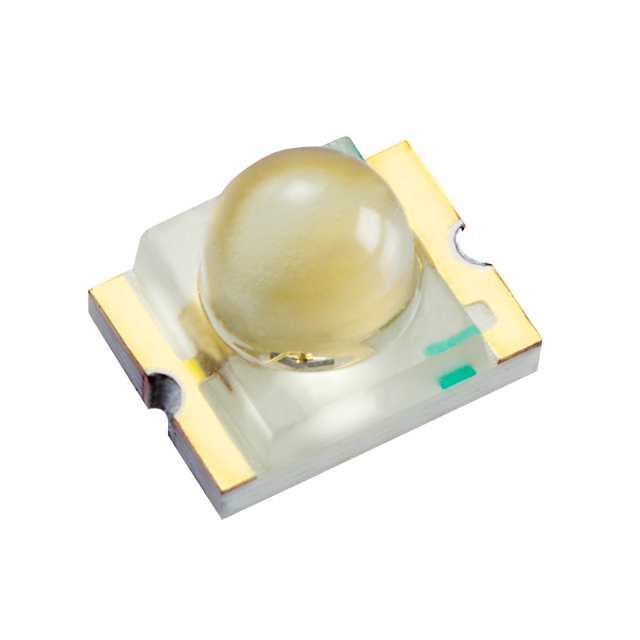

Kingbright APD3224ZGCK-F01	1.7 mm	3.3 V	515 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Green		1210	3225 Metric	5.8 cd	Clear	525 nm	Round with Domed Top	Independent	2-SMD	Colorless	2.5 mm
Kingbright APD3224YC-F01	1.7 mm	2.1 V	590 nm	3.2 mm	2.4 mm	20 °	20 mA	Surface Mount	Yellow	2.4 mm	1210	3225 Metric	50 mcd	Clear	588 nm	Round with Domed Top	Standard	SMD	Colorless
