745-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 66POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Material	Number of Positions	Pitch	Pitch	Mounting Type	Gender	Number of Positions/Bay/Row	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Type	Termination	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 745-066-540-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit Wire Wrap
EDAC Inc. 745-066-541-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit Wire Wrap
EDAC Inc. 745-066-525-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit
EDAC Inc. 745-066-545-206	Polyester Thermoplastic		Non Specified - Dual Edge	Black	-40 C	105 ░C	Dual	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	33	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám		Cantilever	Press-Fit	2	2
EDAC Inc. 745-066-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit
EDAC Inc. 745-066-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit Wire Wrap
EDAC Inc. 745-066-522-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit
EDAC Inc. 745-066-522-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit

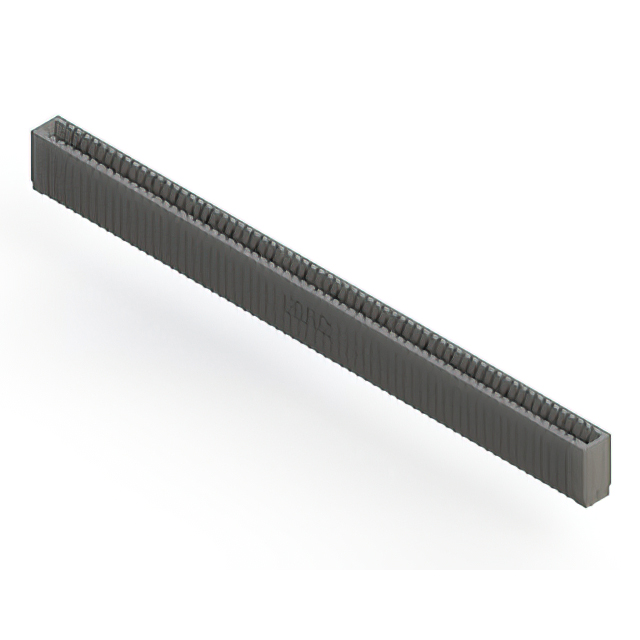

EDAC Inc. 745-066-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	-40 C	105 ░C	Single	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	66	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	1	Cantilever	Press-Fit
EDAC Inc. 745-066-522-201	Polyester Thermoplastic		Non Specified - Dual Edge	Black	-40 C	105 ░C	Dual	Copper Alloy	66	0.1 "	2.54 mm	Through Hole	Female	33	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám		Cantilever	Press-Fit	2	2
