074164 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 50POS 2.54MM

Part	Number of Positions	Contact Finish - Post	Features	Contact Material	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Connector Type	Applications	Contact Length - Post	Contact Length - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Height [custom]	Insulation Height [custom]	Mounting Type	Termination	Number of Rows	Contact Finish - Mating
Molex 0741640150	50	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640054	54	Tin	Board Guide	Copper Alloy	UL94 V-0	74.8 Áin	1.9 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	15 µin	0.38 µm	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2	Gold
Molex 0741640140	40	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640108	8	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640026	26	Tin	Board Guide	Copper Alloy	UL94 V-0	74.8 Áin	1.9 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	15 µin	0.38 µm	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2	Gold
Molex 0741640122	22 positions	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640124	24	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640144	44	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2
Molex 0741640118	18	Tin	Board Guide	Copper Alloy	UL94 V-0	150 Áin	3.81 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	150 Áin	3.81 Ám	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2

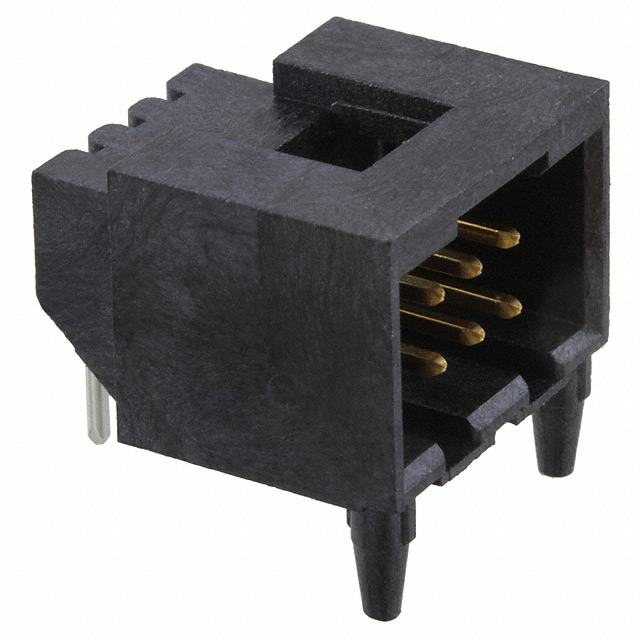

Molex 0741640006	6	Tin	Board Guide	Copper Alloy	UL94 V-0	74.8 Áin	1.9 Ám	Male Pin	Shrouded - 4 Wall	8 mm	0.315 in	2.54 mm	0.1 in	15 µin	0.38 µm	Black	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	0.13 in	3.3 mm	Square	0.1 in	2.54 mm	Latch Holder	All	0.42 in	10.67 mm	Through Hole Right Angle	Solder	2	Gold
