174-E09 Series
Manufacturer: NorComp Inc.
Beta
⌘K

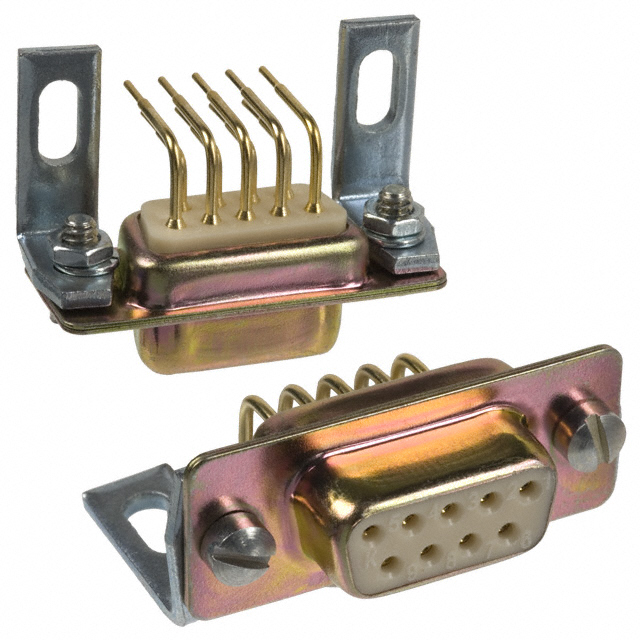

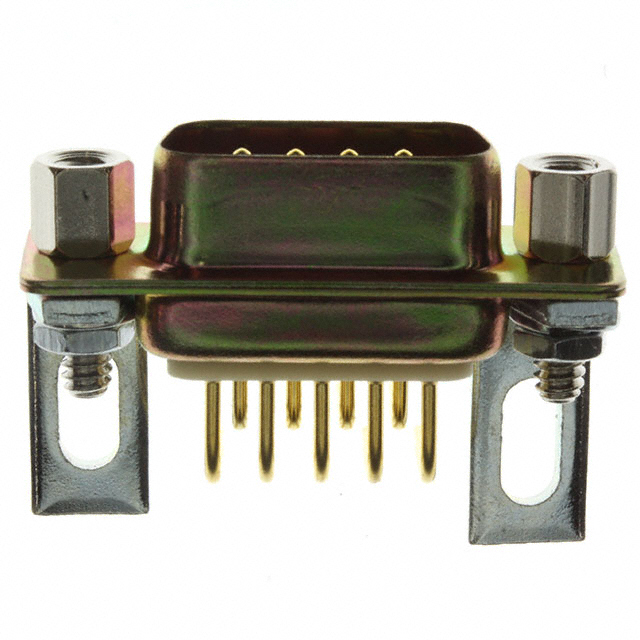

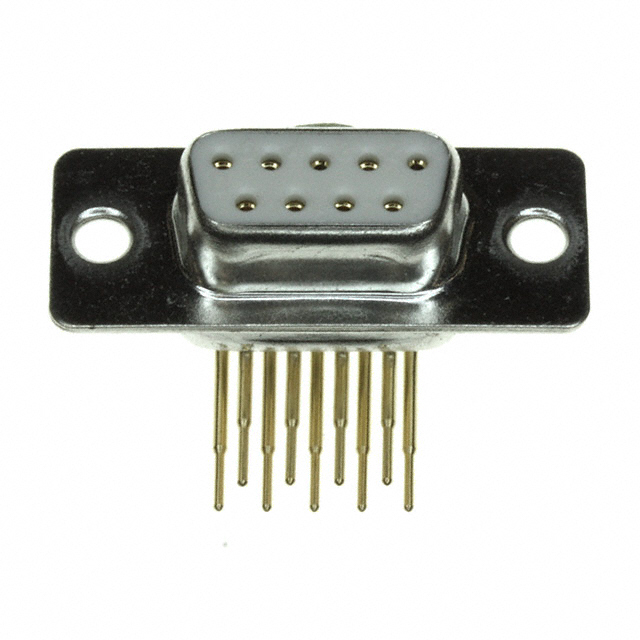

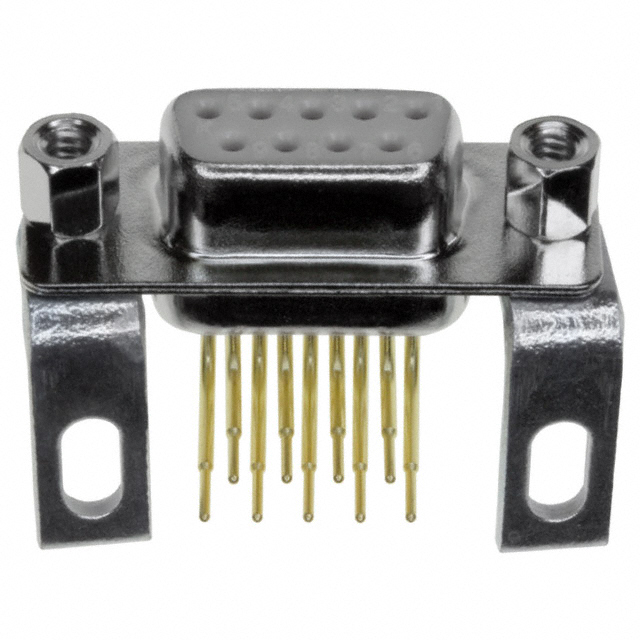

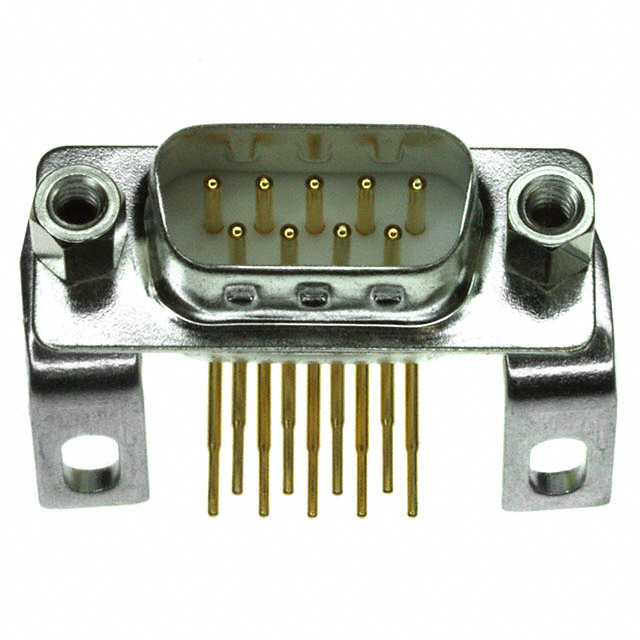

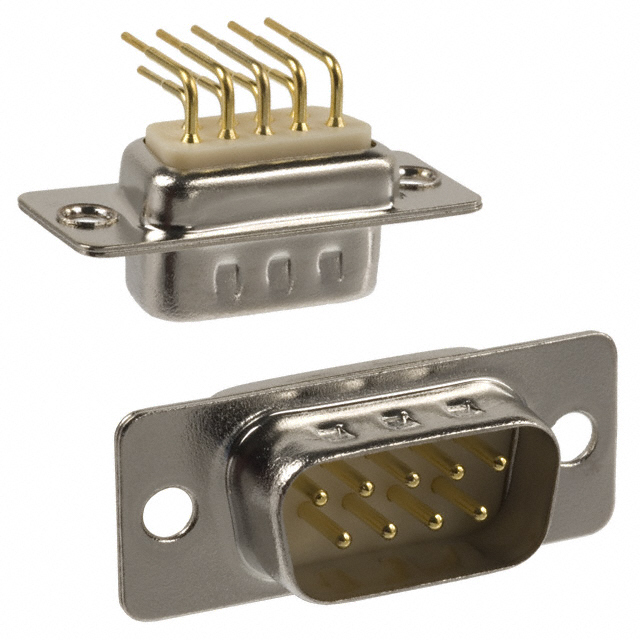

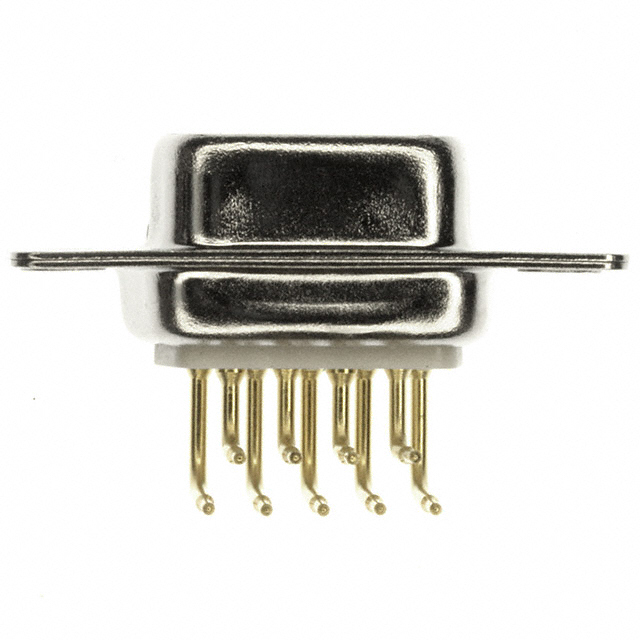

D SUB CONNECTOR, DB9, STANDARD, PLUG, 174-E M SERIES, 9 CONTACTS, DE, SOLDER
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Connector Style | Contact Type | Contact Finish Thickness | Termination | Material Flammability Rating | Number of Positions | Flange Feature | Mounting Type | Features | Current Rating (Amps) | Connector Type | Backset Spacing | Backset Spacing | Contact Material | Flange Feature | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | Nickel Plated Steel | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | Grounding Indents | 5 A | Plug Male Pins | 9.4 mm | 0.37 in | ||||
 NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | Nickel Plated Steel | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Mounting Brackets | 5 A | Receptacle Female Sockets | 9.4 mm | 0.37 in | Brass | |||
 NorComp Inc. | White | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | Grounding Indents | 5 A | Plug Male Pins | 9.4 mm | 0.37 in | |||||
NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | Nickel Plated Steel | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Housing/Shell | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | 5 A | Plug Male Pins | 9.4 mm | 0.37 in | Brass | 4-40 | ||
 NorComp Inc. | White | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | 5 A | Receptacle Female Sockets | 9.4 mm | 0.37 in | ||||||
 NorComp Inc. | White | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Grounding Indents Mounting Brackets | 5 A | Plug Male Pins | 9.4 mm | 0.37 in | |||||
 NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Mating Side Standard Screws (4-40) | Panel Mount Right Angle Through Hole | Mounting Brackets | 5 A | Receptacle Female Sockets | 9.4 mm | 0.37 in | Brass | Steel | Yellow Chromate Plated | ||
NorComp Inc. | White | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Mounting Brackets | 5 A | Receptacle Female Sockets | 9.4 mm | 0.37 in | |||||
 NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | Nickel Plated Steel | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | 5 A | Receptacle Female Sockets | 9.4 mm | 0.37 in | Brass | ||||
 NorComp Inc. | White | 100 °C | -50 °C | Polyamide (PA6T) Nylon 6T | 1 | DE E | Gold | 2 | D-Sub | Signal | Flash | Solder | UL94 V-0 | 9 | 4-40 Mating Side Female Screwlock | Panel Mount Right Angle Through Hole | Mounting Brackets | 5 A | Plug Male Pins | 9.4 mm | 0.37 in | Steel | Yellow Chromate Plated |
