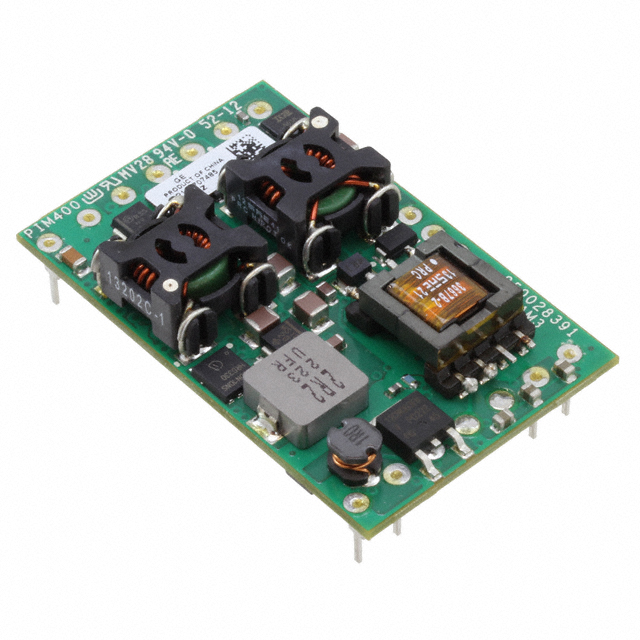

PIM400 Series

Catalog

DC DC CONVERTER -48V 400W

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Supplier Device Package	Type	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Features
OmniOn Power™ PIM400K6Z	-48 V	36.8 mm	0.54 "	58.4 mm	2.3 in	13.7 mm	1.45 in	18-DIP Module 1/4 Brick	Through Hole	-75 V	Quarter Brick	Isolated Module Digital	2250 VDC	10 A	1	-36 V	85 °C	-40 C	ITE (Commercial)	98.5 %	OCP OTP OVP UVLO
OmniOn Power™ PIM400K6Z	-48 V	36.8 mm	0.54 "	58.4 mm	2.3 in	13.7 mm	1.45 in	18-DIP Module 1/4 Brick	Through Hole	-75 V	Quarter Brick	Isolated Module Digital	2250 VDC	10 A	1	-36 V	85 °C	-40 C	ITE (Commercial)	98.5 %	OCP OTP OVP UVLO
OmniOn Power™ PIM400Z	-48 V	36.8 mm	0.54 "	58.4 mm	2.3 in	13.7 mm	1.45 in	1/4 Brick 15-DIP Module	Through Hole	-75 V	Quarter Brick	Isolated Module	2250 VDC	10 A	2	-36 V	85 °C	-40 C	ITE (Commercial)	98.5 %	OCP OTP OVP UVLO
OmniOn Power™ PIM400Z	-48 V	36.8 mm	0.54 "	58.4 mm	2.3 in	13.7 mm	1.45 in	1/4 Brick 15-DIP Module	Through Hole	-75 V	Quarter Brick	Isolated Module	2250 VDC	10 A	2	-36 V	85 °C	-40 C	ITE (Commercial)	98.5 %	OCP OTP OVP UVLO
