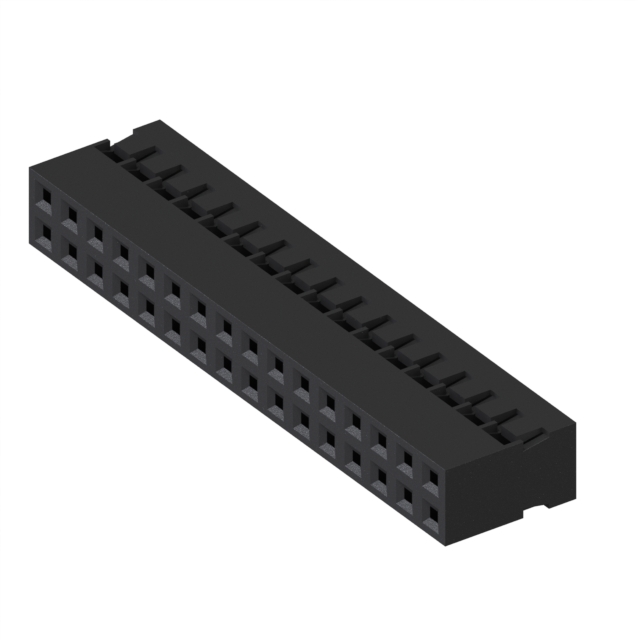

M22-302 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,PLUG,16 CONTACTS,SKT,0.079 PITCH ROHS COMPLIANT: YES

Part	Note	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Row Spacing	Row Spacing	Color	Number of Positions	Contact Termination	Connector Type	Insulation Material	Contact Type

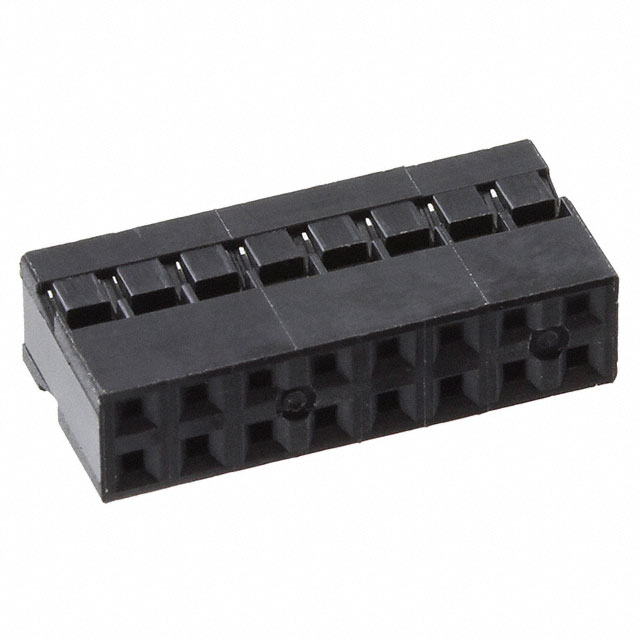

Harwin Inc. M22-3020800	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	16	Crimp	Receptacle	Thermoplastic	Female Socket

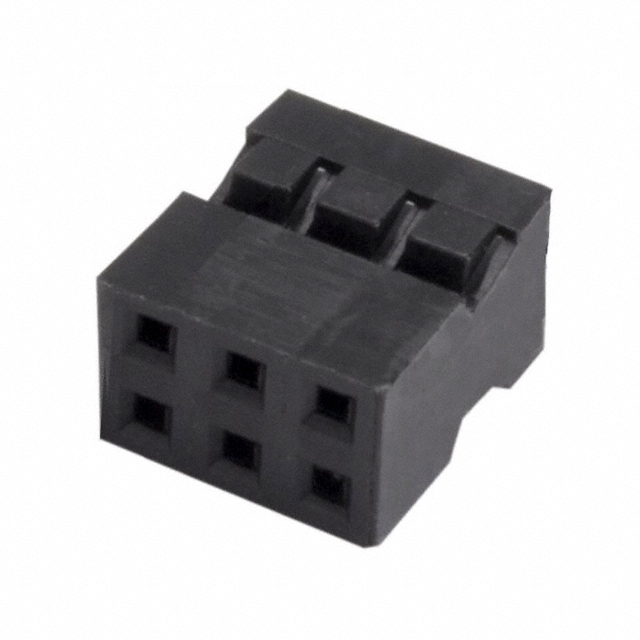

Harwin Inc. M22-3020300	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	6	Crimp	Receptacle	Thermoplastic	Female Socket

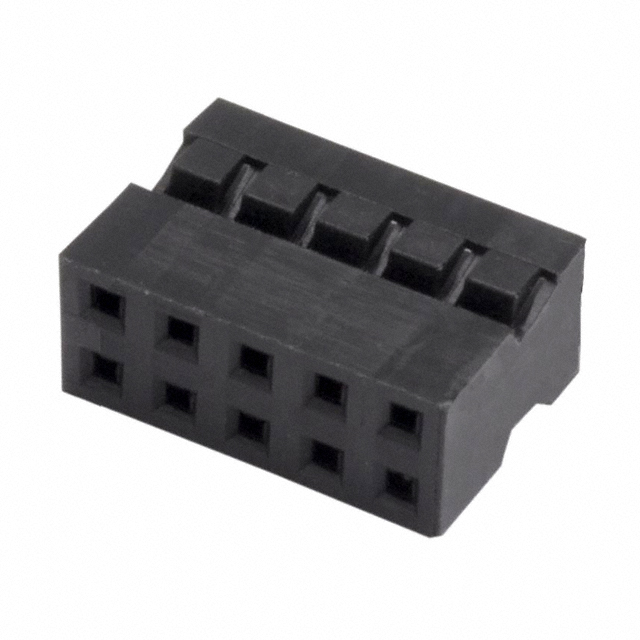

Harwin Inc. M22-3020500	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	10	Crimp	Receptacle	Thermoplastic	Female Socket

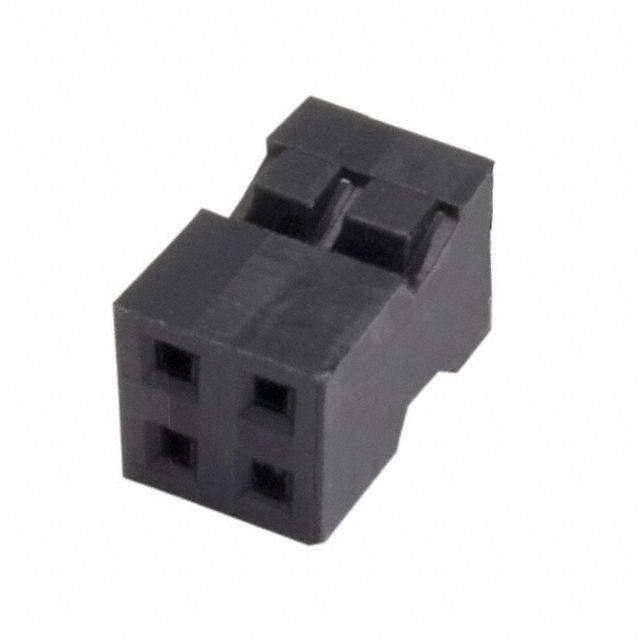

Harwin Inc. M22-3020200	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	4	Crimp	Receptacle	Thermoplastic	Female Socket

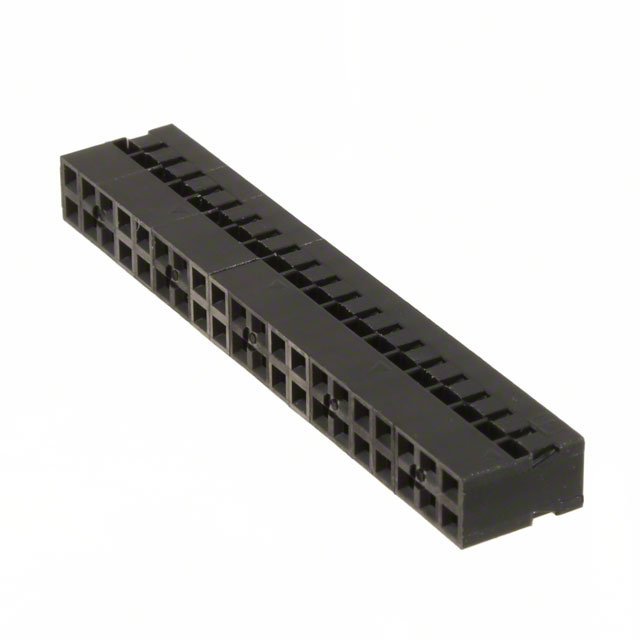

Harwin Inc. M22-3022000	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	40	Crimp	Receptacle	Thermoplastic	Female Socket

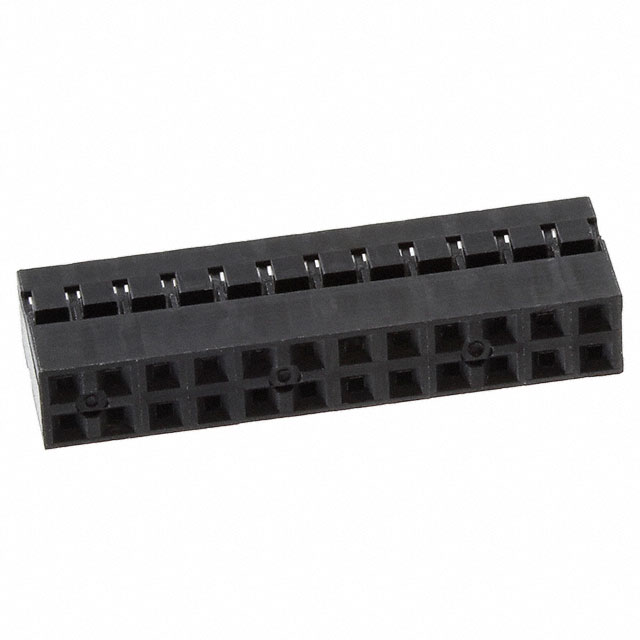

Harwin Inc. M22-3021200	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	24	Crimp	Receptacle	Thermoplastic	Female Socket
Harwin Inc. M22-3020400	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	8	Crimp	Receptacle	Thermoplastic	Female Socket

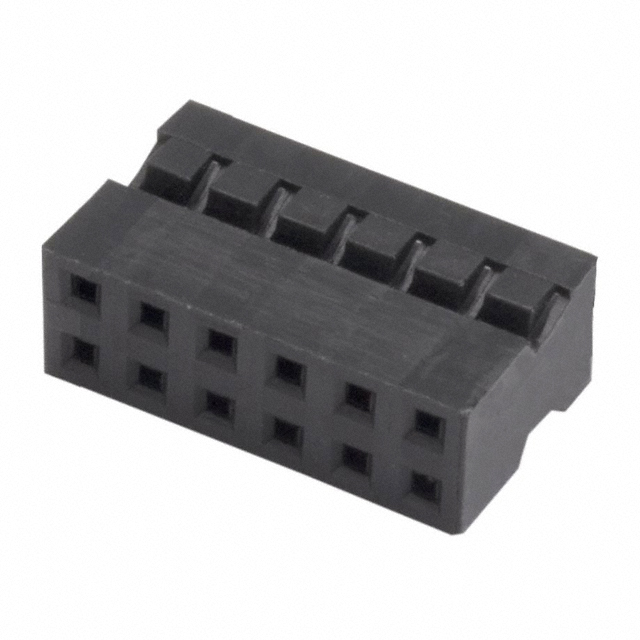

Harwin Inc. M22-3020600	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black	12	Crimp	Receptacle	Thermoplastic	Female Socket
Harwin Inc. M22-3021600	Contacts Not Included	0.079 in	2 mm	Free Hanging (In-Line)	85 °C	-25 °C	2	2 mm	0.079 in	Black		Crimp	Receptacle	Thermoplastic	Female Socket
