FLLE2 Series

Manufacturer: KEMET

Catalog

Catalog

LINE FLTR 1200VDC 250A CHASS MNT

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated DC	Voltage - Rated DC	Applications	Mounting Type	Configuration	Approval Agency	Termination Style	Filter Type	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Voltage - Rated AC

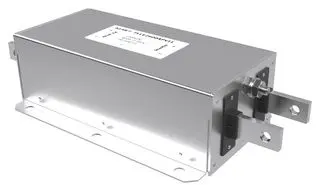

KEMET FLLE2250APXI1	-40 C	100 °C	1.2 kV	1.2 kV	Photovoltaic Inverter	Chassis Mount	Single Stage	EN UL	Terminal Post	DC	250 A
KEMET FLLE2032AUDI	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Single Stage		Threaded Post (M4)	Single Phase	32 A	60 Hz	50 Hz	800 µH	300 V
KEMET FLLE2013ARDD	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Two Stage		Wire Leads	Single Phase	13 A	60 Hz	50 Hz	600 µH	300 V
KEMET FLLE2016ASDD	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Two Stage		Wire Leads	Single Phase	16 A	60 Hz	50 Hz	4 mH	300 V
KEMET FLLE2010ARMB	-25 °C	100 °C		300 V	Medical	Chassis Mount	Two Stage		Quick Connect	Single Phase	10 A	60 Hz	50 Hz	1 mH	300 V
KEMET FLLE2010AQMB	-25 °C	100 °C		300 V	Medical	Chassis Mount	Single Stage		Quick Connect	Single Phase	10 A	60 Hz	50 Hz	1 mH	300 V

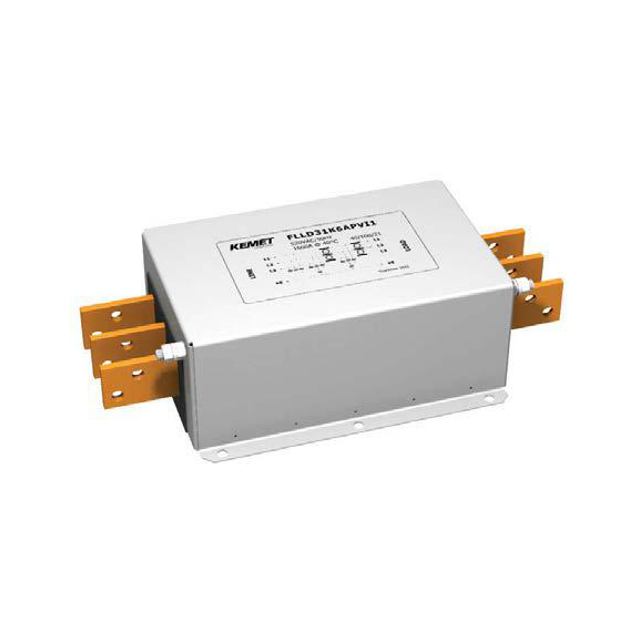

KEMET FLLE2006APDB	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Single Stage		Quick Connect	Single Phase	6 A	60 Hz	50 Hz	1 mH	300 V
KEMET FLLE2016ARMD	-25 °C	100 °C		300 V	Medical	Chassis Mount	Two Stage		Wire Leads	Single Phase	16 A	60 Hz	50 Hz	600 µH	300 V
KEMET FLLE2032APDI	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Single Stage		Threaded Post (M4)	Single Phase	32 A	60 Hz	50 Hz	800 µH	300 V
KEMET FLLE2001AUDD	-25 °C	100 °C		300 V	General Purpose	Chassis Mount	Two Stage		Wire Leads	Single Phase	1 A	60 Hz	50 Hz	22 mH	300 V
