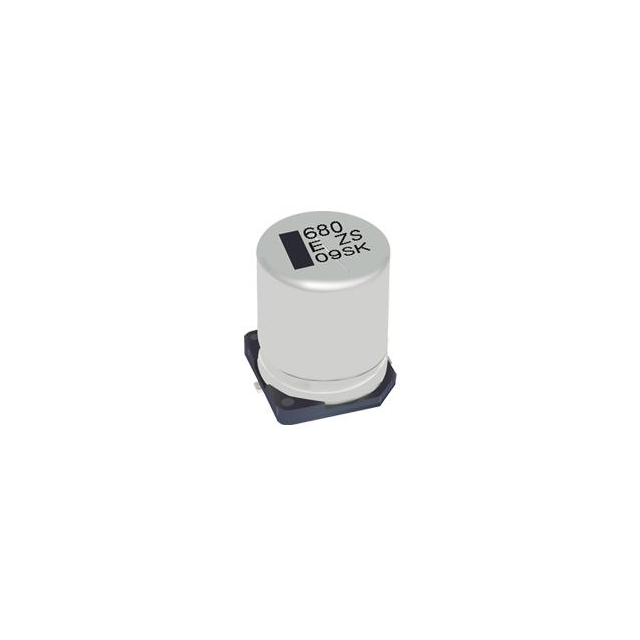

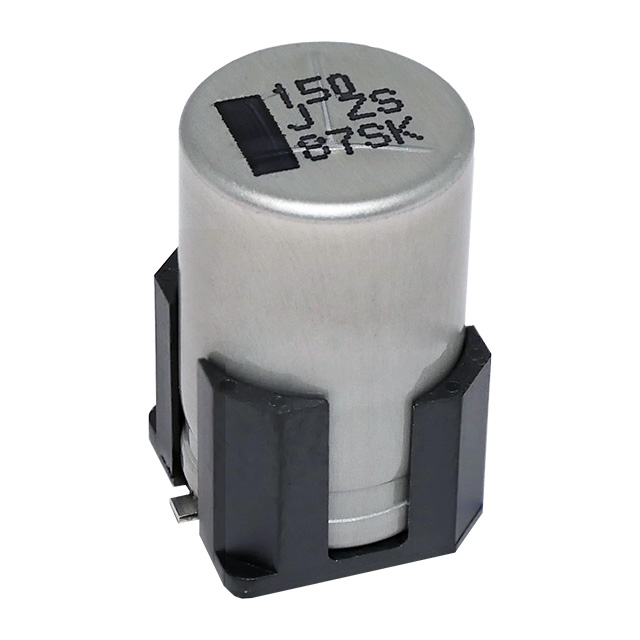

EEH-ZS Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 1000 ΜF, ± 20%, 25 V, RADIAL CAN - SMD, 0.011 OHM

Part	Type	Package / Case	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Voltage - Rated	Lifetime @ Temp.	Ratings	Ripple Current @ High Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

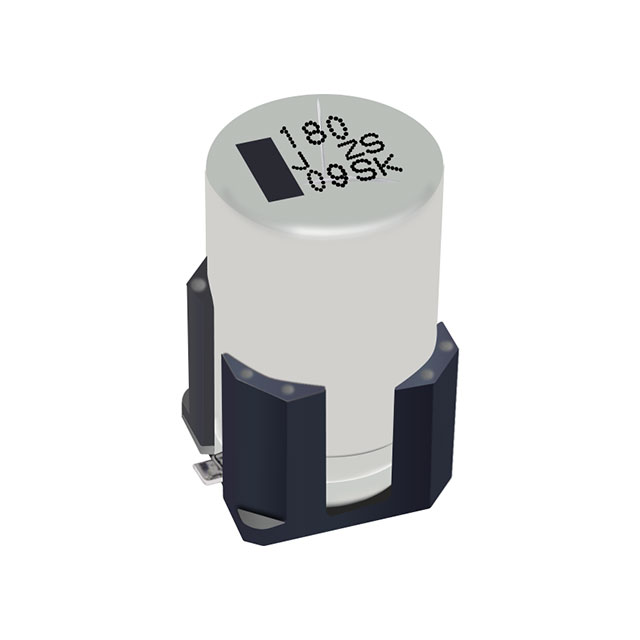

Panasonic Industrial Automation Sales EEH-ZS1E102UP	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	1000 µF	-55 °C	125 °C	11 mOhm	800 mA	25 VDC	4000 Hrs	AEC-Q200	4 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	16.8 mm	0.661 "	Automotive
Panasonic Industrial Automation Sales EEH-ZS1V471V	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	470 µF	-55 °C	125 °C	11 mOhm	600 mA	35 V	4000 Hrs	AEC-Q200	4 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	16.8 mm	0.661 "	Automotive
Panasonic Industrial Automation Sales EEH-ZS1E102UV	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	1000 µF	-55 °C	125 °C	11 mOhm	800 mA	25 VDC	4000 Hrs	AEC-Q200	4 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	17.1 mm	0.673 in	Automotive
Panasonic Industrial Automation Sales EEH-ZS1E681UV	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	680 µF	-55 °C	125 °C	14 mOhms	700 mA	25 VDC	4000 Hrs	AEC-Q200	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount			Automotive	13.1 mm	0.516 in
Panasonic Industrial Automation Sales EEH-ZS1J181UP	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	180 çF	-55 °C	125 °C	15 mOhm	700 mA	63 V	4000 Hrs	AEC-Q200	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	16.8 mm	0.661 "	Automotive
Panasonic Industrial Automation Sales EEH-ZS1E471V	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	470 µF	-55 °C	125 °C	14 mOhms	525 mA	25 VDC	4000 Hrs	AEC-Q200	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount			Automotive	13.1 mm	0.516 in
Panasonic Industrial Automation Sales EEH-ZS1V471P	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	470 µF	-55 °C	125 °C	11 mOhm	600 mA	35 V	4000 Hrs	AEC-Q200	4 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	16.8 mm	0.661 "	Automotive
Panasonic Industrial Automation Sales EEH-ZS1E681UP	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	680 µF	-55 °C	125 °C	14 mOhms	700 mA	25 VDC	4000 Hrs	AEC-Q200	3.5 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	12.8 mm	0.504 in	Automotive
Panasonic Industrial Automation Sales EEH-ZS1H181UV	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	180 çF	-55 °C	125 °C	17 mOhm	640 mA	50 VDC	4000 Hrs	AEC-Q200	3.2 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount			Automotive	13.1 mm	0.516 in
Panasonic Industrial Automation Sales EEH-ZS1V681UP	Hybrid	Radial Can - SMD	20 %	10 mm	0.394 in	680 µF	-55 °C	125 °C	11 mOhm	800 mA	35 V	4000 Hrs	AEC-Q200	4 A	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	16.8 mm	0.661 "	Automotive
