R12848 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

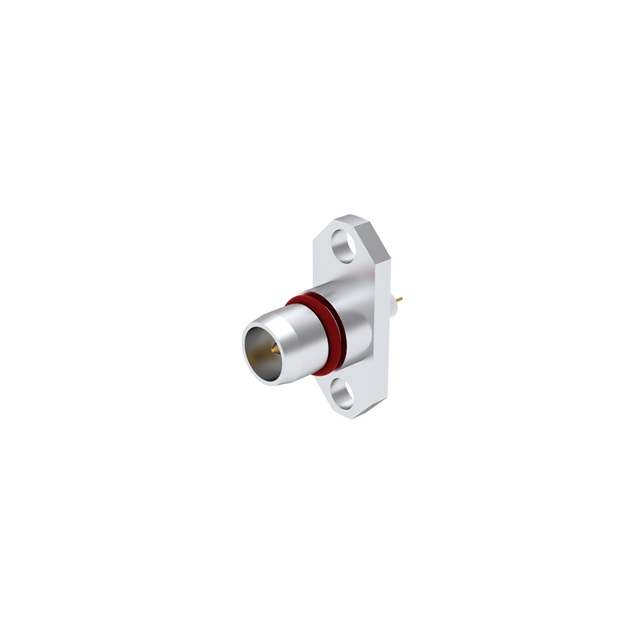

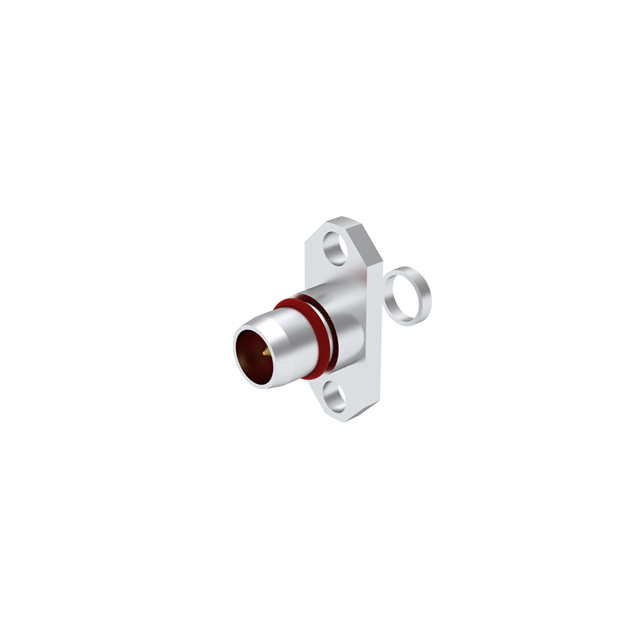

BMA / 2 HOLE FLANGE PLUG RECEPTA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Dielectric Material | Voltage Rating | Body Material | Connector Type | Mounting Feature | Frequency - Max [Max] | Fastening Type | Center Contact Material | Number of Ports | Housing Color | Impedance | Ingress Protection | Mounting Type | Connector Style | Contact Termination | Shield Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 105 ░C | -65 ░C | Gold | 1000 | Polytetrafluoroethylene (PTFE) | 350 VDC | Stainless Steel | Receptacle Male Pin | Flange | 22 GHz | Snap-On | Beryllium Copper | 1 | Silver | 50 Ohms | IP54 - Dust Protected | Panel Mount | BMA | Compression | Screw | |
 Radiall USA, Inc. | 125 °C | -65 ░C | Gold | 1000 | Polytetrafluoroethylene (PTFE) | 500 V | Stainless Steel | Plug Male Pin | Flange | 22 GHz | Snap-On | Beryllium Copper | 1 | Silver | 50 Ohms | IP54 - Dust Protected | Panel Mount Through Hole | BMA | Solder | Solder | Extended Insulation |
