EN3P17 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT MALE 17POS GOLD SOLDER
| Part | Ingress Protection | Shielding | Color | Applications | Connector Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Primary Material | Termination | Fastening Type | Mounting Type | Voltage Rating | Mounting Feature | Orientation | Contact Material | Material Flammability Rating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

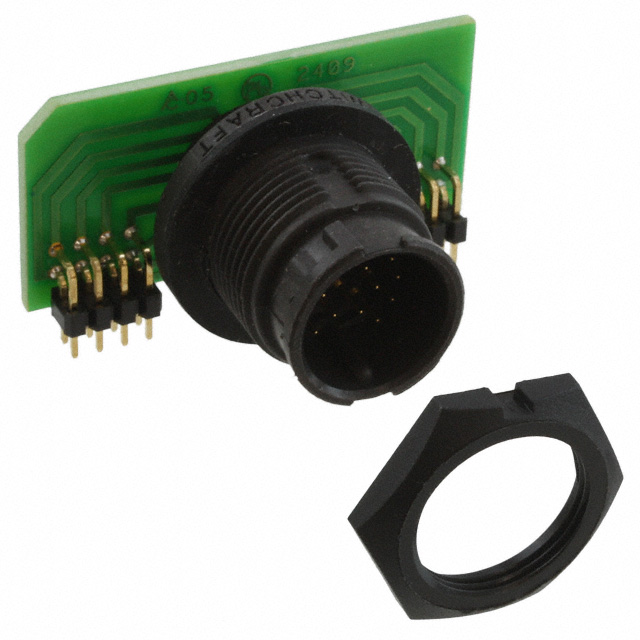

 Switchcraft Inc. | IP66/IP68 | Unshielded | Black | General Purpose Instrumentation Marine Medical | Male Pins Receptacle | 2 A | 65 °C | -40 °C | Gold | Plastic | Circuit Board Solder | Bayonet Lock | Panel Mount Right Angle Through Hole | 250 VAC | Bulkhead - Front Side Nut | Keyed | Copper Alloy | UL94 V-0 | Elastomer |

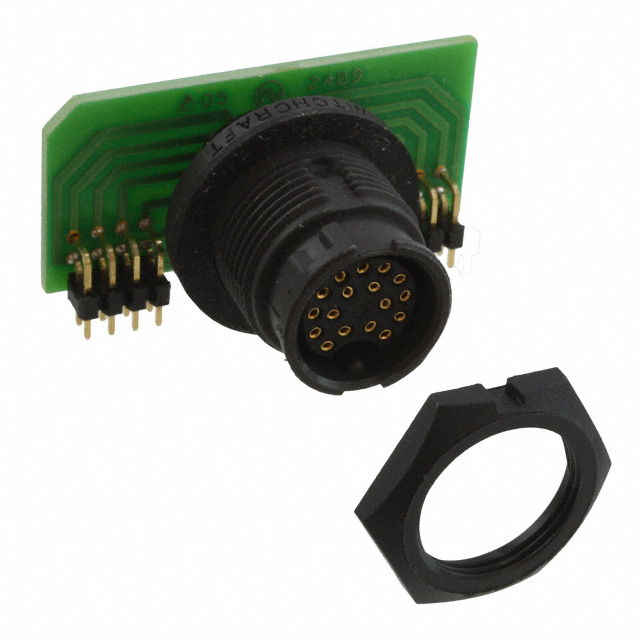

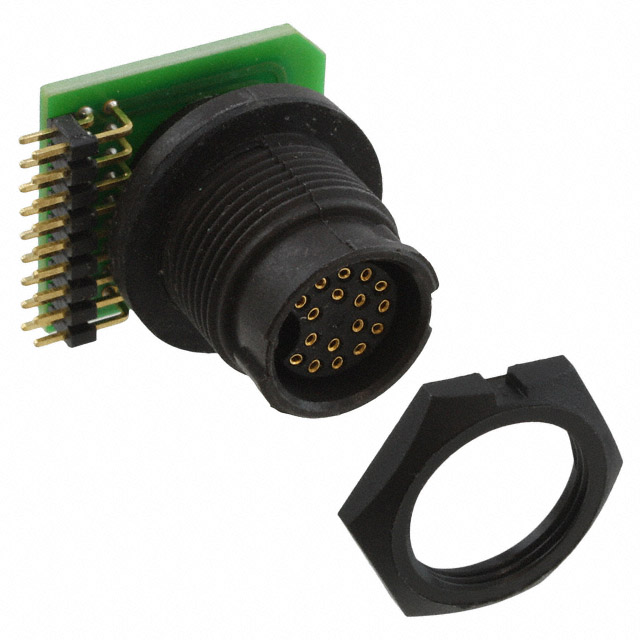

 Switchcraft Inc. | IP66/IP68 | Unshielded | Black | General Purpose Instrumentation Marine Medical | Receptacle Female Sockets | 2 A | 65 °C | -40 °C | Gold | Plastic | Circuit Board Solder | Bayonet Lock | Panel Mount Right Angle Through Hole | 250 VAC | Bulkhead - Front Side Nut | Keyed | Copper Alloy | UL94 V-0 | Elastomer |
 Switchcraft Inc. | IP66/IP68 | Unshielded | Black | General Purpose Instrumentation Marine Medical | Male Pins Receptacle | 2 A | 65 °C | -40 °C | Gold | Plastic | Circuit Board Solder | Bayonet Lock | Panel Mount Right Angle Through Hole | 250 VAC | Bulkhead - Front Side Nut | Keyed | Copper Alloy | UL94 V-0 | Elastomer |
 Switchcraft Inc. | IP66/IP68 | Unshielded | Black | General Purpose Instrumentation Marine Medical | Receptacle Female Sockets | 2 A | 65 °C | -40 °C | Gold | Plastic | Circuit Board Solder | Bayonet Lock | Panel Mount Right Angle Through Hole | 250 VAC | Bulkhead - Front Side Nut | Keyed | Copper Alloy | UL94 V-0 | Elastomer |
