CFM40S Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

SWITCHING POWER SUPPLIES

Part	Load Regulation	Line Regulation	Operating Temperature [Max]	Number of Outputs	Package / Case	Efficiency	Standard Number	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Power (Watts)	Applications	Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1 [custom]	Voltage - Isolation	Current - Output 1

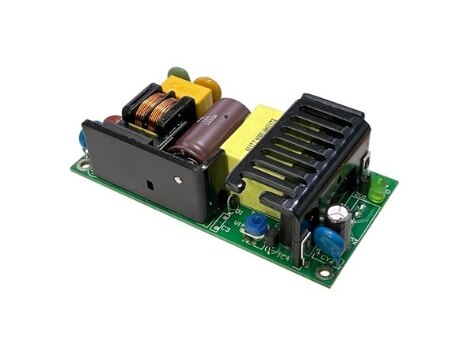

Cincon Electronics Co. LTD CFM40S090-P	±1%	0.5 %	70 °C	1	Module	84 %	62368-1	9 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	4.45 A	CE cURus FCC TUV	40 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
Cincon Electronics Co. LTD CFM40S480-P	±1%	0.5 %	70 °C	1	Module	87 %	62368-1	48 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	830 mA	CE cURus FCC TUV	40 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
Cincon Electronics Co. LTD CFM40S360-P			70 °C	1	Module	87 %	62368-1		101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	1.11 A	CE cURus FCC TUV	40 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC	36 V
Cincon Electronics Co. LTD CFM40S120-CA			70 °C	1		85 %		12 V	117 mm	2.44 "	4.61 "	40 mm	62 mm	1.58 in	Chassis Mount		CE cURus FCC TUV	40 W	ITE (Commercial)	Enclosed	Universal Input	264 VAC	90 VAC		4.242 kV	3.34 A
Cincon Electronics Co. LTD CFM40S300-P	±1%	0.5 %	70 °C	1	Module	86 %	62368-1	30 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	1.33 A	CE cURus FCC TUV	40 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
Cincon Electronics Co. LTD CFM40S033			70 °C	1		70 %		3.3 V	101.6 mm	2 in	4 "	30.5 mm	50.8 mm	1.2 "	Chassis Mount		CE cURus FCC TUV	20 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC		4.242 kV	6 A
Cincon Electronics Co. LTD CFM40S050-P	±1%	0.5 %	70 °C	1	Module	76 %	62368-1	5 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	6 A	CE cURus FCC TUV	30 Watts	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
Cincon Electronics Co. LTD CFM40S150-P	±1%	0.5 %	70 °C	1	Module	85 %	62368-1	15 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	2.67 A	CE cURus FCC TUV	40 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
Cincon Electronics Co. LTD CFM40S240-CA			70 °C	1		85 %		24 V	117 mm	2.44 "	4.61 "	40 mm	62 mm	1.58 in	Chassis Mount		CE cURus FCC TUV	40 W	ITE (Commercial)	Enclosed	Universal Input	264 VAC	90 VAC		4.242 kV	1.67 A
Cincon Electronics Co. LTD CFM40S033-P	±1%	0.5 %	70 °C	1	Module	70 %	62368-1	3.3 V	101.6 mm	2 in	4 "	32.4 mm	50.8 mm	1.27 "	Through Hole	6 A	CE cURus FCC TUV	20 W	ITE (Commercial)	Open Frame	Universal Input	264 VAC	90 VAC
