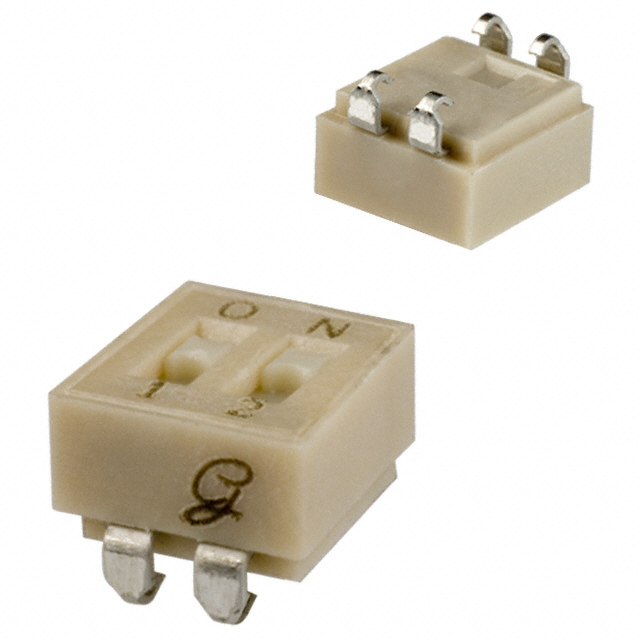

90HBJ02 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Electrical Life	Body Material	Length	Length	Termination Style	Pitch	Pitch	Actuator Type	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Circuit	Actuator Level	Features	Contact Finish	Washable	Number of Positions	Voltage Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
Grayhill Inc. 90HBJ02PRT	2000 Cycles	2000 Steps	Thermoplastic	0.27 in	6.86 mm	J Lead	2.54 mm	0.1 "	Slide (Standard)	0.22 in	5.59 mm	25 mA	SPST	Flush Recessed	Tape Seal	Gold		2	24 VDC	Surface Mount	85 °C	-40 C	Copper Alloy
Grayhill Inc. 90HBJ02PT	2000 Cycles	2000 Steps	Thermoplastic	0.27 in	6.86 mm	J Lead	2.54 mm	0.1 "	Slide (Standard)	0.22 in	5.59 mm	25 mA	SPST	Flush Recessed	Tape Seal	Gold		2	24 VDC	Surface Mount	85 °C	-40 C	Copper Alloy
