PZC34 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 68POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Material	Number of Rows [custom]	Contact Finish - Post	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Shape	Overall Contact Length	Overall Contact Length	Termination	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Material	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Rows	Number of Positions [custom]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]

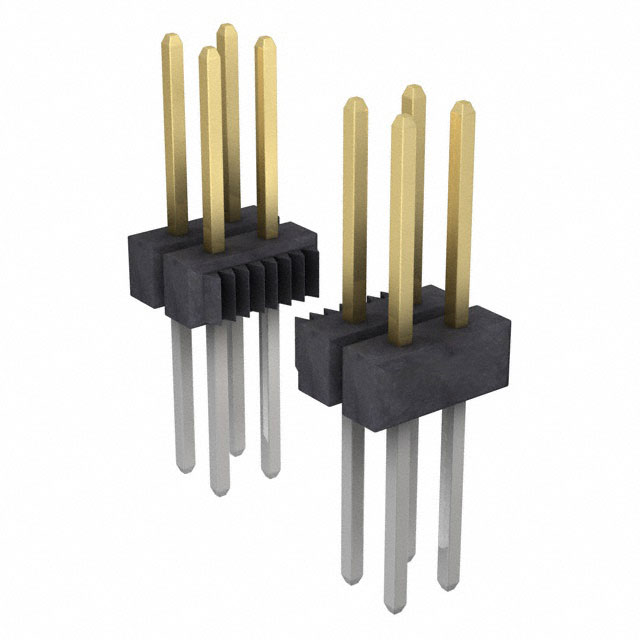

Sullins Connector Solutions PZC34DFCN	0.1 in	2.54 mm	Copper Alloy	2	Tin	UL94 V-0	All	Black	Push-Pull	Square	18.75 mm	0.738 in	Solder	8.13 mm	0.32 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	68 positions	Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable

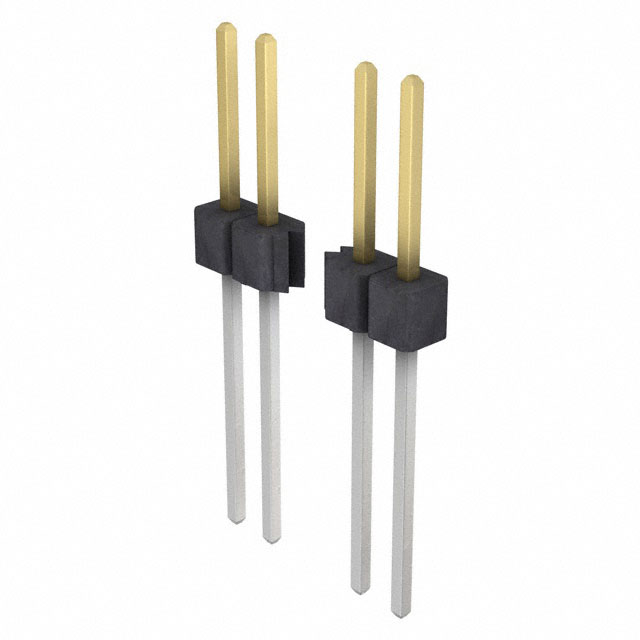

Sullins Connector Solutions PZC34SFEN	0.1 in	2.54 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square	23.83 mm		Solder	13.21 mm	0.52 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34	0.938 in
Sullins Connector Solutions PZC34SFAN	0.1 in	2.54 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square			Solder	3.05 mm	0.12 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34		13.67 mm	0.538 in

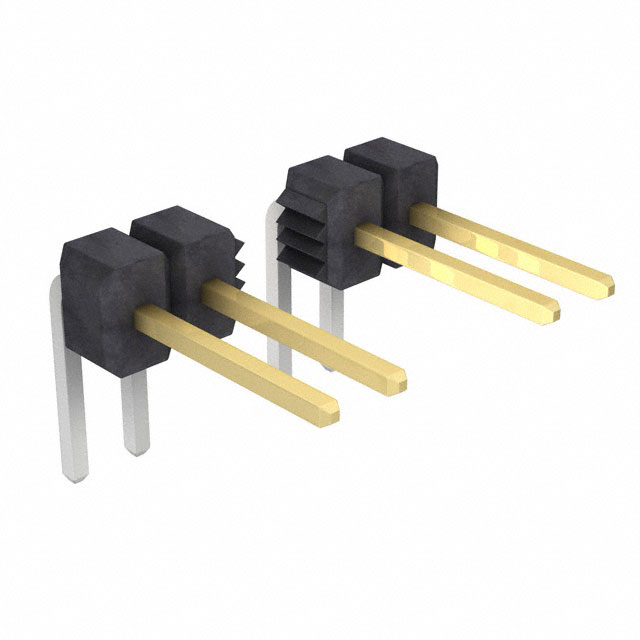

Sullins Connector Solutions PZC34SGBN	0.14 in	3.56 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square			Solder	5.58 mm	0.22 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Right Angle Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34
Sullins Connector Solutions PZC34DACN	0.1 in	2.54 mm	Copper Alloy	2	Tin	UL94 V-0	All	Black	Push-Pull	Square	16.51 mm		Solder	8.13 mm	0.32 in	3 A	5.84 mm	0.23 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	68 positions	Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable			0.65 in
Sullins Connector Solutions PZC34DFEN	0.1 in	2.54 mm	Copper Alloy	2	Tin	UL94 V-0	All	Black	Push-Pull	Square	23.83 mm		Solder	13.21 mm	0.52 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	68 positions	Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable			0.938 in
Sullins Connector Solutions PZC34SAEN	0.1 in	2.54 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square	21.59 mm		Solder	13.21 mm	0.52 in	3 A	5.84 mm	0.23 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34	0.85 in
Sullins Connector Solutions PZC34DADN	0.1 in	2.54 mm	Copper Alloy	2	Tin	UL94 V-0	All	Black	Push-Pull	Square			Solder	10.67 mm	0.42 in	3 A	5.84 mm	0.23 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin	0.1 in	2.54 mm	68 positions	Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable				19.05 mm	0.75 in
Sullins Connector Solutions PZC34SAHN	0.1 in	2.54 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square	29.21 mm		Solder	20.83 mm	0.82 in	3 A	5.84 mm	0.23 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34	1.15 in
Sullins Connector Solutions PZC34SFCN	0.1 in	2.54 mm	Copper Alloy		Tin	UL94 V-0	All	Black	Push-Pull	Square	18.75 mm	0.738 in	Solder	8.13 mm	0.32 in	3 A	8.08 mm	0.318 in	Polyester Thermoplastic	Unshrouded	Header	0.1 "	2.54 mm	Male Pin				Through Hole	2.54 µm	100 µin	Gold	0.25 µm	10 µin	Board to Board Cable	1	34
