RF292 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL CONNECTOR, 2.92MM COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Voltage Rating | Body Material | Contact Termination | Number of Ports | Shield Termination | Connector Type | Impedance | Fastening Type | Housing Color | Connector Style [x] | Center Contact Material | Frequency - Max [Max] | Mounting Feature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

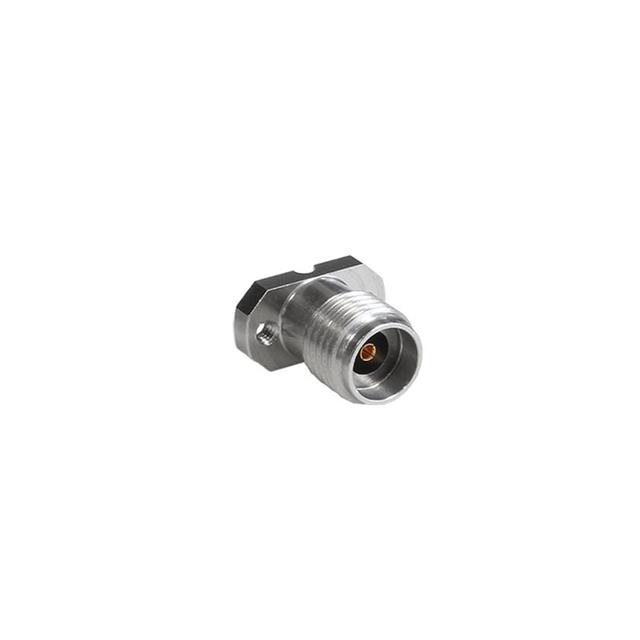

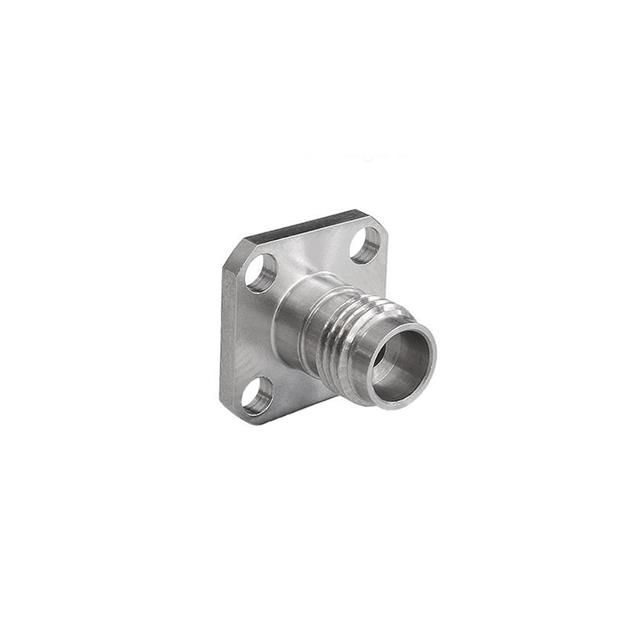

 BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Compression | 1 | Screw | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount |

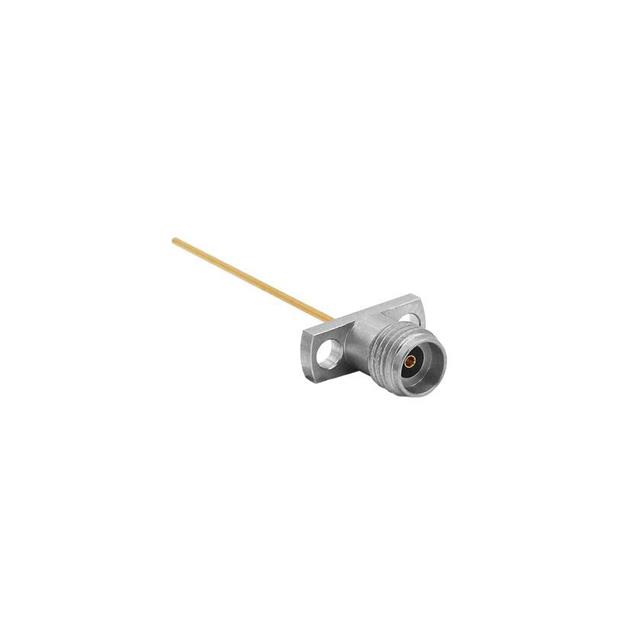

 BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount Through Hole |
BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount Through Hole |
 BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Compression | 1 | Screw | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount |

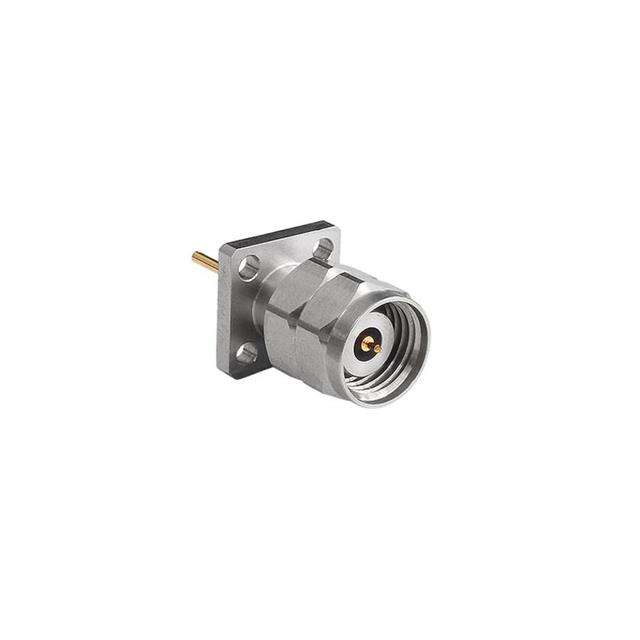

BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Plug Male Pin | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount Through Hole |
 BULGIN LIMITED | 125 °C | -55 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Compression | 1 | Screw | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Board Edge End Launch | |
 BULGIN LIMITED | 125 °C | -55 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Compression | 1 | Screw | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount |
 BULGIN LIMITED | 165 °C | -65 ░C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Plug Male Pin | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Free Hanging (In-Line) | |
 BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount Through Hole |
BULGIN LIMITED | 85 °C | -40 C | Polyetherimide (PEI) | 500 | 250 V | Stainless Steel | Solder | 1 | Solder | Female Socket Jack | 50 Ohms | Threaded | Silver | 2.92 mm | Beryllium Copper | 40 GHz | Flange | Panel Mount Through Hole |
