501645 Series

2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 18 Circuits, Tray, 2.20mm PC Tail Length, Natural, with PCB Locator

Manufacturer: Molex

Catalog

2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 18 Circuits, Tray, 2.20mm PC Tail Length, Natural, with PCB Locator

Part	Features	Insulation Color	Style	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Connector Type	Contact Material	Fastening Type	Contact Finish - Post	Voltage Rating	Termination	Number of Positions Loaded	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Applications	Number of Positions	Current Rating (Amps)
Molex 5016452224	Board Guide	Blue	Board to Cable/Wire	Through Hole	0.079 in	2 mm	2 A	Header	Brass	Latch Holder	Tin	250 VAC	Solder	All	Male Pin	22 positions	3.2 mm	0.126 in	Shrouded - 4 Wall	-40 °C	105 ░C	1 çm	39.4 çin	2	Glass Filled Nylon Polyamide (PA)	0.079 in	2 mm	Square	UL94 V-0	1 µm	39.4 µin	0.472 in	12 mm

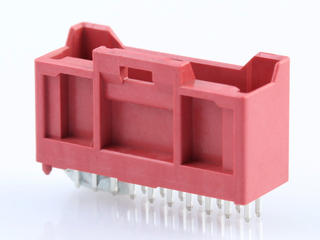

Molex 5016451622
Molex 5016453422

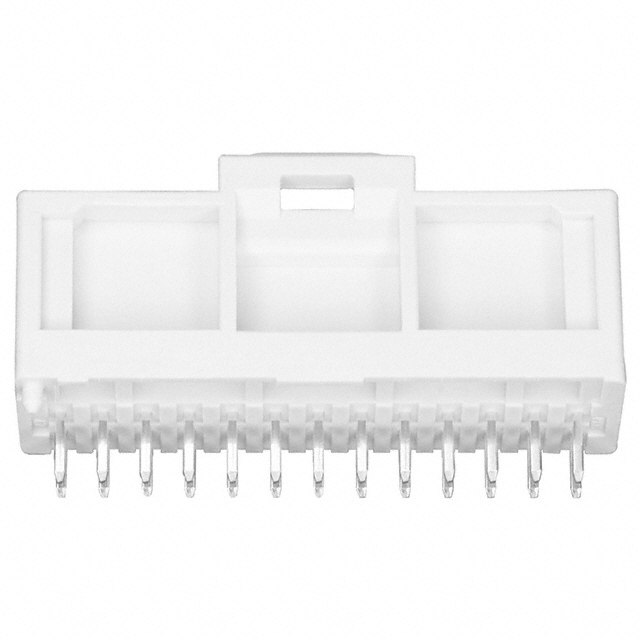

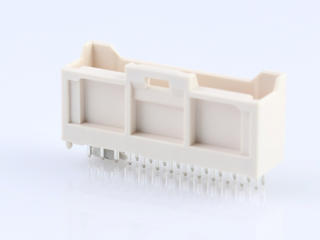

Molex 5016452620	Board Guide	Natural	Board to Cable/Wire	Through Hole	0.079 in	2 mm		Header	Brass	Latch Holder	Tin		Solder	All	Male Pin	26	3.2 mm	0.126 in	Shrouded - 4 Wall					2	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Square	UL94 V-0			0.472 in	12 mm	Automotive General Purpose Industrial Medical Telecommunications

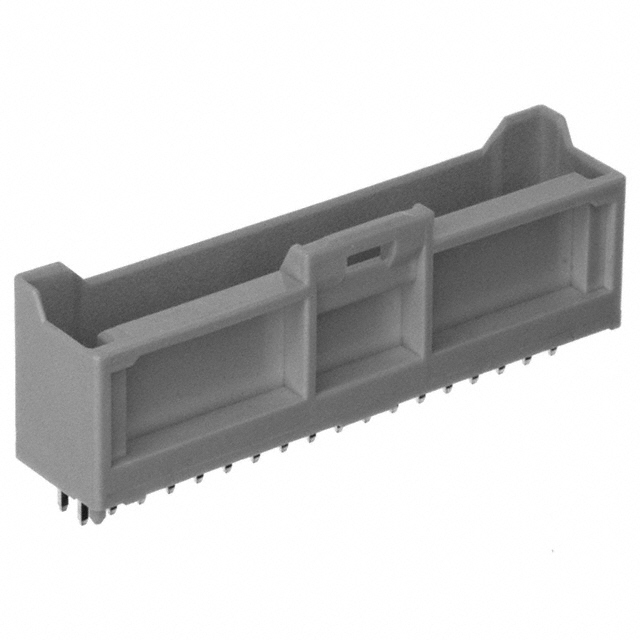

Molex 5016453620	Board Guide	Natural	Board to Cable/Wire	Through Hole	0.079 in	2 mm		Header	Brass	Latch Holder	Tin		Solder	All	Male Pin	36	3.2 mm	0.126 in	Shrouded - 4 Wall					2	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Square	UL94 V-0			0.472 in	12 mm	Automotive General Purpose Industrial Medical Telecommunications

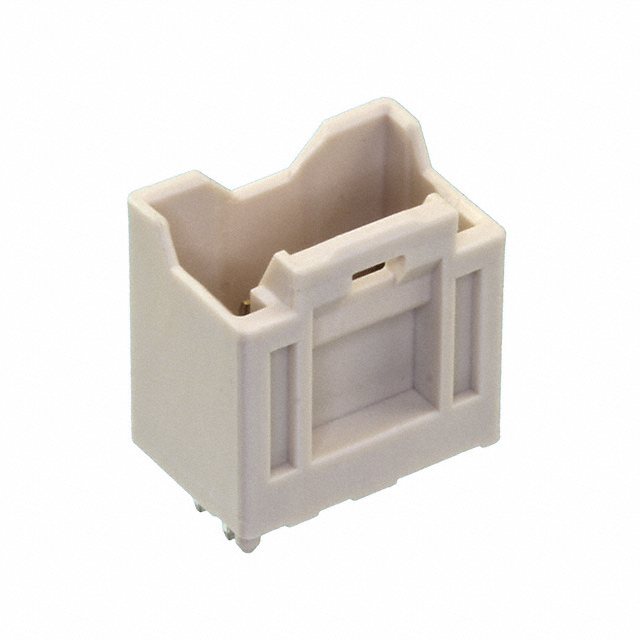

Molex 5016451020	Board Guide	Natural	Board to Cable/Wire	Through Hole	0.079 in	2 mm		Header	Brass	Latch Holder	Tin		Solder	All	Male Pin	10	3.2 mm	0.126 in	Shrouded - 4 Wall					2	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Square	UL94 V-0			0.472 in	12 mm	Automotive General Purpose Industrial Medical Telecommunications
Molex 5016452822
Molex 5016451624	Board Guide	Blue	Board to Cable/Wire	Through Hole	0.079 in	2 mm		Plug	Brass	Latch Lock	Tin	250 VAC	Solder	All	Male Pin		3.2 mm	0.126 in	Shrouded - 4 Wall	-40 °C	105 ░C	1 çm	39.4 çin	2	Glass Filled Nylon Polyamide (PA)	0.079 in	2 mm	Square	UL94 V-0	1 µm	39.4 µin	0.472 in	12 mm		16	Varies by Wire Gauge

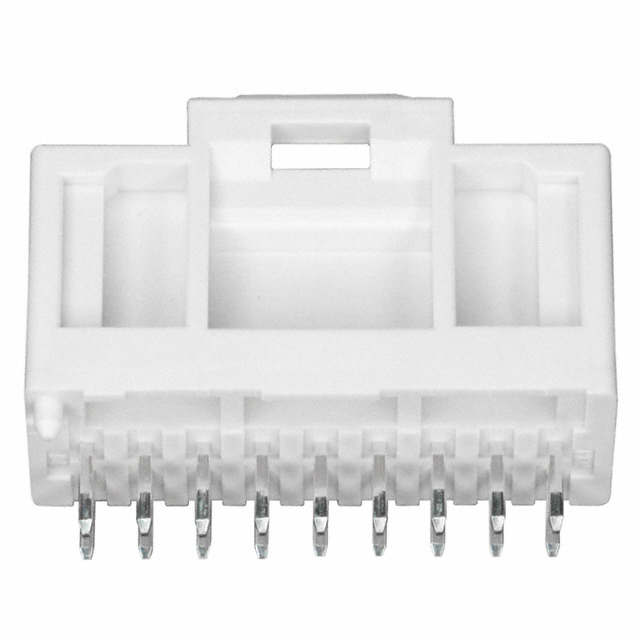

Molex 5016451820	Board Guide	Natural	Board to Cable/Wire	Through Hole	0.079 in	2 mm		Header	Brass	Latch Holder	Tin		Solder	All	Male Pin	18	3.2 mm	0.126 in	Shrouded - 4 Wall					2	Polyamide (PA66) Nylon 6/6 Glass Filled	0.079 in	2 mm	Square	UL94 V-0			0.472 in	12 mm	Automotive General Purpose Industrial Medical Telecommunications
Molex 5016453224	Board Guide	Blue	Board to Cable/Wire	Through Hole	0.079 in	2 mm	2 A	Header	Brass	Latch Holder	Tin	250 VAC	Solder	All	Male Pin		3.2 mm	0.126 in	Shrouded - 4 Wall	-40 °C	105 ░C	1 çm	39.4 çin	2	Nylon Polyamide (PA)	0.079 in	2 mm	Square	UL94 V-0	1 µm	39.4 µin	0.472 in	12 mm
