31_N-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

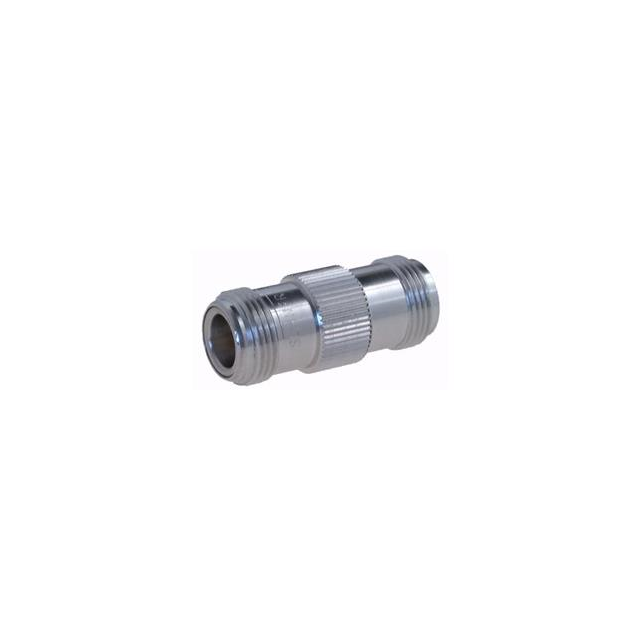

RF ADAPTER, N - N JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Body Material | Mating Cycles | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Impedance | Frequency - Max [Max] | Center Contact Plating | Adapter Series | Convert From (Adapter End) | Convert To (Adapter End) | Style | Center Gender | Adapter Type | Conversion Type | Dielectric Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Stainless Steel | 500 | Beryllium Copper | -55 C | 70 °C | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Gold | N to N | Female Socket N Jack | N Jack Female Socket | Straight | Female to Female | Jack to Jack | Same Series | ||
 Huber+Suhner, Inc. | Brass | 500 | Beryllium Copper | -65 ░C | 165 °C | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Gold | N to N | Female Socket N Jack | N Jack Female Socket | Straight | Female to Female | Jack to Jack | Same Series | Polytetrafluoroethylene (PTFE) | White Bronze |
 Huber+Suhner, Inc. | Brass | 500 | Beryllium Copper | -65 ░C | 165 °C | Free Hanging (In-Line) | 50 Ohms | 18 GHz | Gold | N to N | Female Socket N Jack | N Jack Female Socket | Straight | Female to Female | Jack to Jack | Same Series | Polytetrafluoroethylene (PTFE) | White Bronze |
