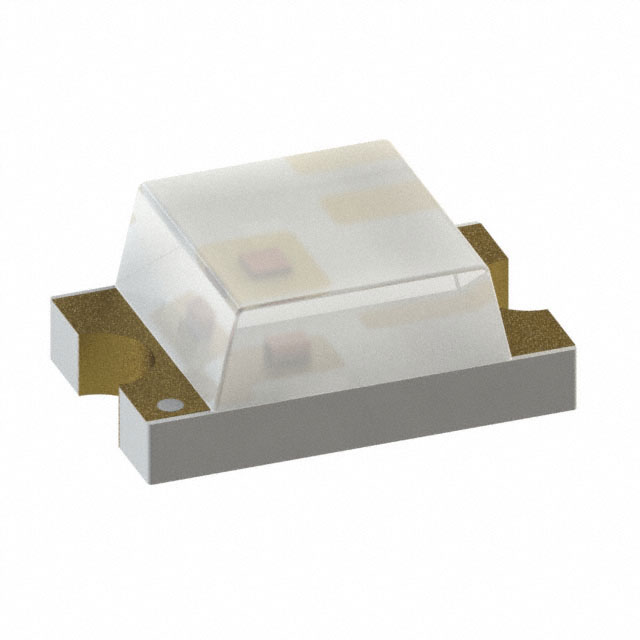

HSMA-C170 Series

Catalog

LED AMBER DIFFUSED SMD

Part	Wavelength - Peak	Lens Style	Viewing Angle	Current - Test	Configuration	Height (Max) [Max] [z]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Dominant	Color	Mounting Type	Lens Transparency	Lens Size [y]	Lens Size [x]	Supplier Device Package	Height (Max) [Max]
Broadcom Limited HSMA-C170	595 nm	Rectangle with Flat Top	170 °	20 mA	Standard	0.8 mm	0805	2 mm	1.25 mm	White	1.9 V	90 mcd	592 nm	Amber	Surface Mount	Diffused	1.25 mm	1.4 mm	Chip LED
Broadcom Limited HSMA-C170-T0000	595 nm	Rectangle with Flat Top	155 °	20 mA	Standard		0805	2 mm	1.25 mm		2 V	426 mcd	592 nm	Amber	Surface Mount		1.25 mm	1.4 mm	2-SMD	0.9 mm
