PESD7V0 Series

Ultra low capacitance bidirectional ESD protection diode

Catalog

Ultra low capacitance bidirectional ESD protection diode

Part	Voltage - Reverse Standoff (Typ)	Type	Current - Peak Pulse (10/1000µs)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Mounting Type	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Capacitance @ Frequency	Package / Case
Nexperia USA Inc. PESD7V0R1BSFYL

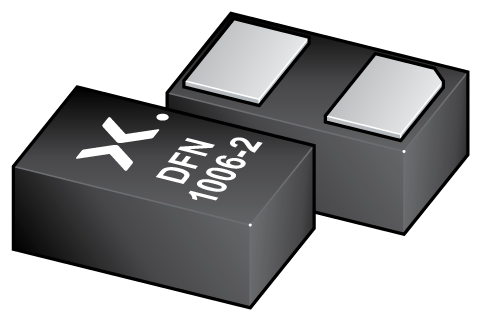

Nexperia USA Inc. PESD7V0L1BSLAZ	7 V	Zener	7 A	Telecom	125 °C	-55 °C	7.5 V	DFN1006-2	1	9.6 V	Surface Mount	SOD-882
Nexperia USA Inc. PESD7V0C1BSFYL	7 V	Zener	9 A	General Purpose	125 °C	-40 °C	7.5 V	DSN0603-2	1		Surface Mount	0201	5.5 V	0.2 pF	0603 Metric

Catalog

Ultra low capacitance bidirectional ESD protection diode

Description

Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a DSN0603-2 (SOD962) leadless ultra small Surface-Mounted Device (SMD) package. The TrEOS Protection family is optimized for safeguarding very sensitive high-speed interfaces against ESD pulses with a high level of robustness.
