971-SLR Series
Manufacturer: WECO Electrical Connectors Inc.
Beta
⌘K
PIN STRIP HEADER; 3 POLE SMT 5MM
| Part | Insulation Height | Insulation Height | Housing Material | Material Flammability Rating | Contact Material | Features | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Number of Levels | Mounting Type | Header Orientation | Termination Style | Current - UL | Type | Voltage - UL | Color | Contact Mating Finish | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WECO Electrical Connectors Inc. | 1.78 mm | 0.07 in | Polyamide (PA) Nylon | UL94 V-0 | Copper Alloy | Pick and Place Cap | -40 C | 105 ░C | 3 | 1 | Surface Mount | Vertical | Solder | 10 A | Header Male Pins Unshrouded | 300 V | Black | Tin | 0.197 in | 5 mm |

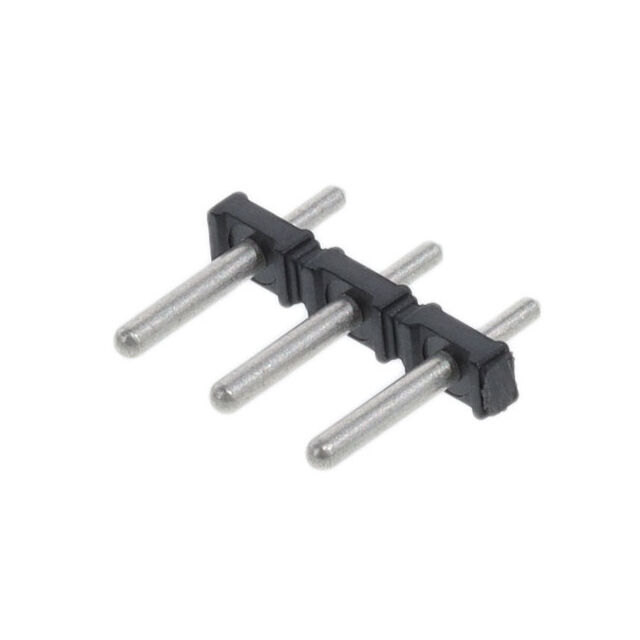

 WECO Electrical Connectors Inc. | 1.78 mm | 0.07 in | Polyamide (PA) Nylon | UL94 V-0 | Copper Alloy | -40 C | 105 ░C | 3 | 1 | Through Hole | Vertical | Solder | 10 A | Header Male Pins Unshrouded | 300 V | Black | Tin | 0.197 in | 5 mm |
