1825271 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

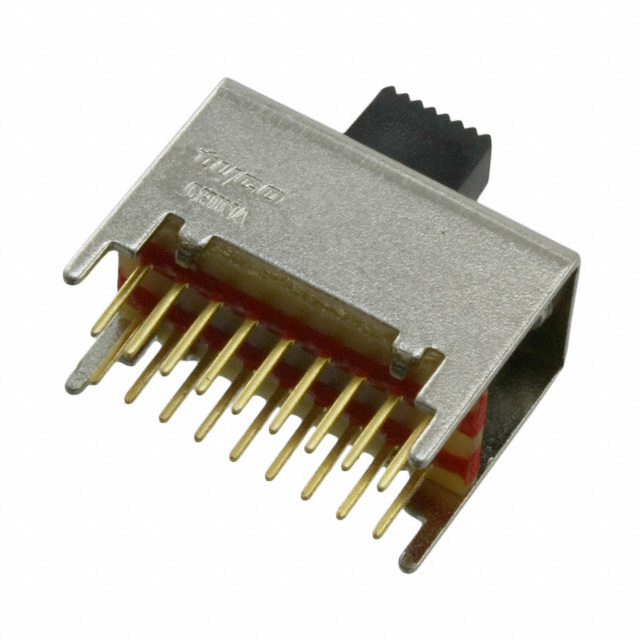

SWITCH SLIDE 6PDT 300MA 125V
| Part | Actuator Material | Contact Material | Features | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Contact Timing | Circuit | Actuator Length [x] | Contact Finish | Mounting Type | Mechanical Life | Switch Function | Actuator Type | Electrical Life | Switch Travel | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Polyoxymethylene (Acetal) (POM) | Copper Alloy | Epoxy Sealed Terminals | 600 gf | 85 °C | -20 C | PC Pin | 300 mA | 125 V | Shorting | 6PDT | 6 mm | Silver | Through Hole | 15000 Cycles | On-On | Standard | 15000 Cycles | 2 mm | |
 TE Connectivity Raychem Cable Protection | Polyoxymethylene (Acetal) (POM) | Copper Alloy | Epoxy Sealed Terminals | 600 gf | 85 °C | -20 C | PC Pin | 0.4 VA | 20 V | Shorting | 6PDT | 6 mm | Gold | Through Hole | 15000 Cycles | On-On | Standard | 15000 Cycles | 2 mm | 20 V |
