3.14.200 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE SPST-NO 0.25A 35V

Part	Termination Style	Actuator Type	Illumination Type, Color	Outline [x]	Outline [y]	Contact Rating @ Voltage	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Circuit	Operating Force	Mounting Type	Illumination	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Switch Travel	Mechanical Life
RAFI USA 3.14.200.746/0000	PC Pin	Square Button	LED White	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated	12.5 mm	SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C
RAFI USA 3.14.200.014/0000	PC Pin	Square Button	LED Yellow	15 mm	15 mm	0.1 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles
RAFI USA 3.14.200.012/0000	PC Pin	Square Button	Green LED	15 mm	15 mm	0.1 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles

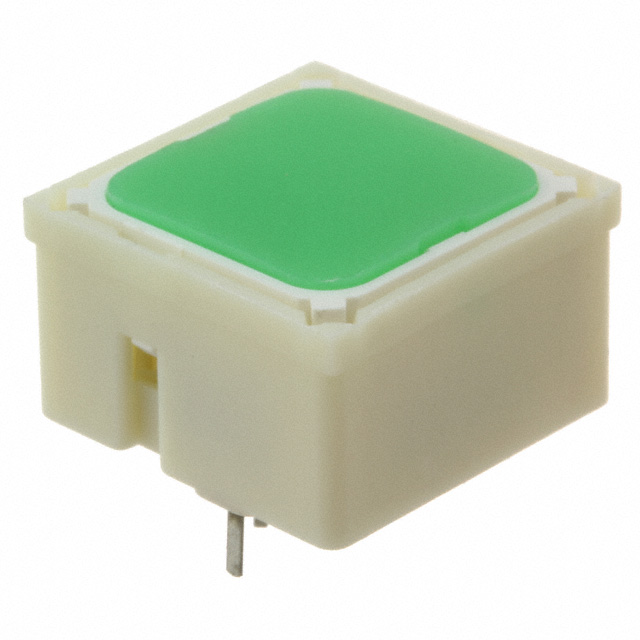

RAFI USA 3.14.200.022/0000	PC Pin	Square Button	Green LED	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles
RAFI USA 3.14.200.022/0000	PC Pin	Square Button	Green LED	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm
RAFI USA 3.14.200.915/0000	PC Pin	Square Button	LED Yellow	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles
RAFI USA 3.14.200.910/0000	PC Pin	Square Button	LED Yellow	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm
RAFI USA 3.14.200.912/0000	PC Pin	Square Button	Green LED	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles

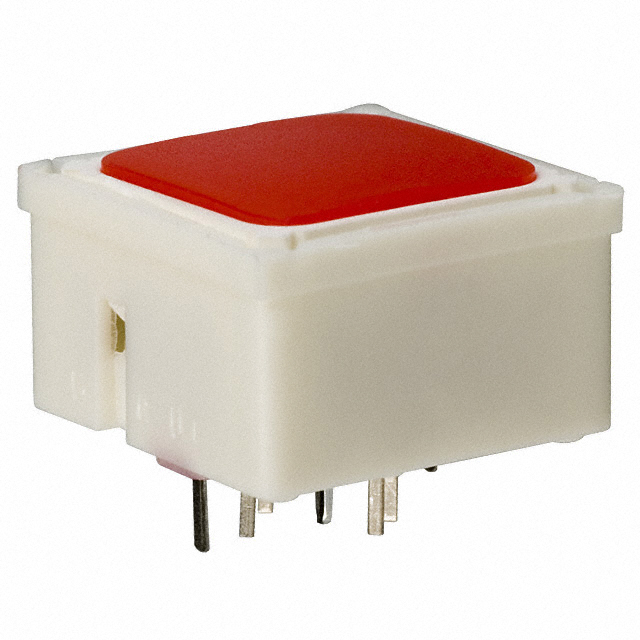

RAFI USA 3.14.200.011/0000	PC Pin	Square Button	LED Red	15 mm	15 mm	0.1 A 35 VAC/DC	Top Actuated		SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C	9.7 mm	0.5 mm	1000000 Cycles
RAFI USA 3.14.200.742/0000	PC Pin	Square Button	Green LED	15 mm	15 mm	0.25 A 35 VAC/DC	Top Actuated	12.5 mm	SPST-NO	296 gf	Through Hole	Illuminated	Off-Mom	-25 °C	70 °C
