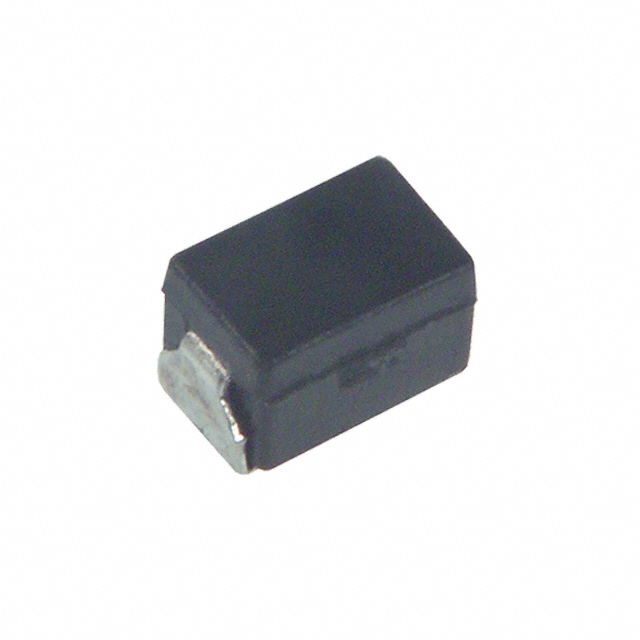

ELJ-PC Series

Catalog

FIXED IND 33UH 120MA 6.5 OHM SMD

Part	Frequency - Self Resonant	Inductance Frequency - Test	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Supplier Device Package	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Tolerance	Q @ Freq	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Inductance	Current Rating (Amps)	Mounting Type	Current - Saturation (Isat)	Material - Core	DC Resistance (DCR) [Max]
Panasonic Industrial Automation Sales ELJ-PC330KF	16 MHz	2.52 MHz	Wirewound	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	1008	85 °C	-20 C	Unshielded	10 %	2.52 MHz 20	0.071 "	1.8 mm	6.5 Ohm	33 µH	120 mA	Surface Mount
Panasonic Industrial Automation Sales ELJ-PC100MF3	43 MHz	1 MHz	Drum Core Wirewound	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	1008	85 °C	-20 C	Unshielded	20 %		0.071 "	1.8 mm	580 mOhm	10 µH	400 mA	Surface Mount	140 mA	Ferrite
Panasonic Industrial Automation Sales ELJ-PC2R2MF3	95 MHz	1 MHz	Drum Core Wirewound	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	1008	85 °C	-20 C	Unshielded	20 %		0.071 "	1.8 mm	190 mOhm	2.2 µH	700 mA	Surface Mount		Ferrite
Panasonic Industrial Automation Sales ELJ-PC1R0MF3	180 MHz	1 MHz	Drum Core Wirewound	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	1008	85 °C	-20 C	Unshielded	20 %		0.071 "	1.8 mm	120 mOhm	1 µH	0.89 A	Surface Mount	400 mA	Ferrite
Panasonic Industrial Automation Sales ELJ-PC220KF	18 MHz	2.52 MHz	Wirewound	0.098 "	2 mm	2.5 mm	0.079 in	1008	2520	1008	85 °C	-20 C	Unshielded	10 %	2.52 MHz 20	0.071 "	1.8 mm		22 µH	160 mA	Surface Mount			4 Ohm
