K66X-A26 Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN D-SUB HD PLG 26POS R/A SLDR
| Part | Contact Material | Dielectric Material | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Mounting Type | Connector Style | Contact Type | Contact Finish | Current Rating (Amps) | Number of Positions | Features | Flange Feature | Flange Feature | Number of Rows [custom] | Connector Type | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

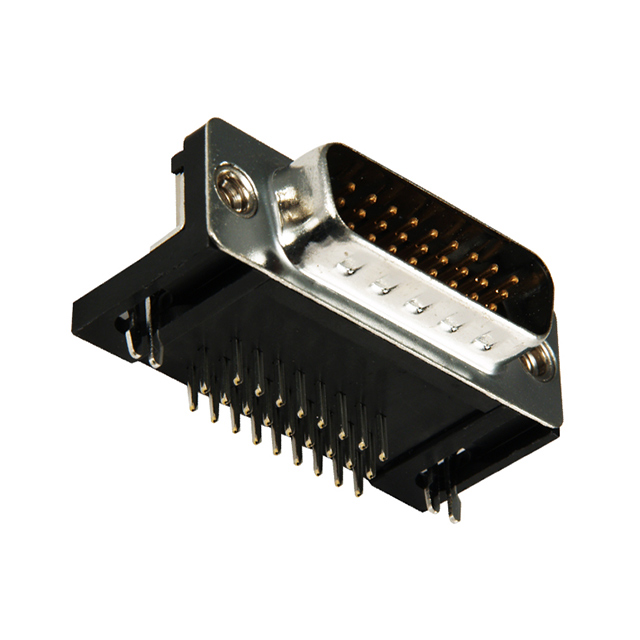

 Kycon, Inc. | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 29 VAC | Black | -55 C | 75 ░C | UL94 V-0 | 2 | DA A | Nickel Plated Steel | 30 Áin | 0.76 Ám | 8.89 mm | 0.35 in | Right Angle Through Hole | D-Sub High Density | Signal | Gold | 1.5 A | 26 | Board Lock Grounding Indents | Housing/Shell | 4-40 | 3 | Plug Male Pins | Solder | |

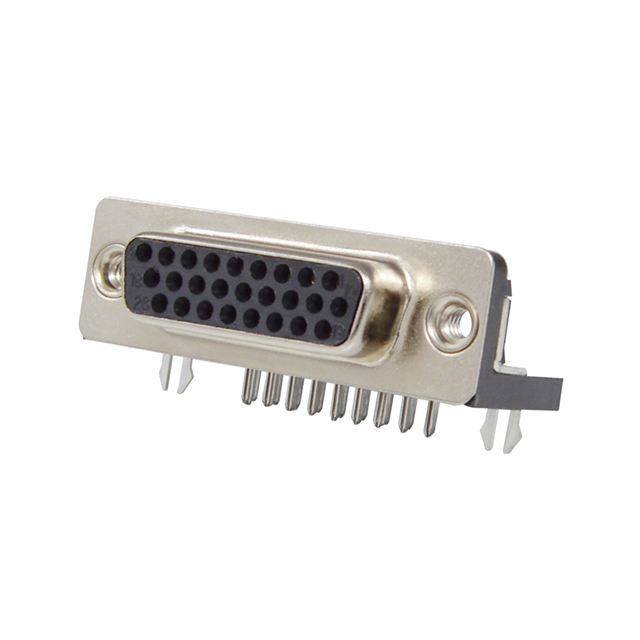

 Kycon, Inc. | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | 29 VAC | Black | -55 C | 75 ░C | UL94 V-0 | 2 | DA A | Nickel Plated Steel | 30 Áin | 0.76 Ám | 8.89 mm | 0.35 in | Right Angle Through Hole | D-Sub High Density | Signal | Gold | 1.5 A | 26 | Board Lock | 4-40 Mating Side Female Screwlock | 3 | Receptacle Female Sockets | Solder | ||
 Kycon, Inc. | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | 29 VAC | Black | -55 C | 75 ░C | UL94 V-0 | 2 | DA A | Nickel Plated Steel | 8.89 mm | 0.35 in | Right Angle Through Hole | D-Sub High Density | Signal | Gold | 1.5 A | 26 | Board Lock | Housing/Shell | 4-40 | 3 | Receptacle Female Sockets | Solder | Flash |
