UF360 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

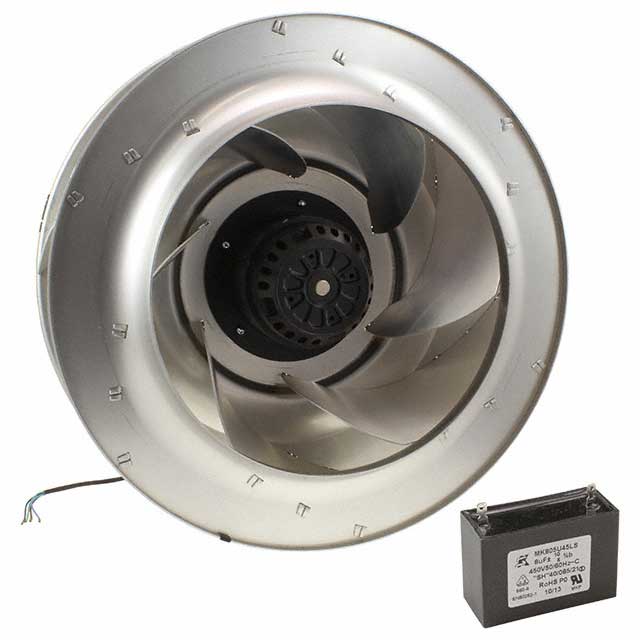

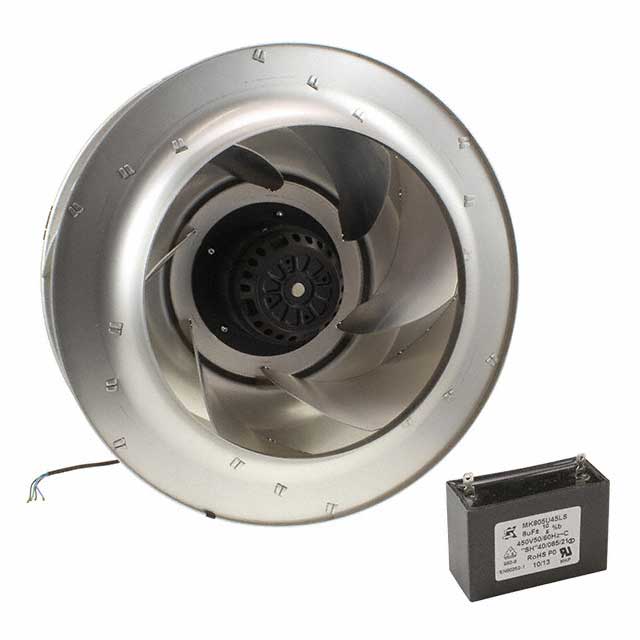

IMPELLER 360X167MM 230VAC
| Part | Material - Frame | Current Rating (Amps) | Material - Blade [custom] | Width [x] | Fan Type | RPM | Bearing Type | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension | Approval Agency | Features | Power (Watts) | Noise | Air Flow | Air Flow | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Aluminum | 1.13 A | Aluminum | 167.3 mm | Motorized Impellers | 1600 RPM | Ball | 230 VAC | 360 mm | Round | CE cUL TUV UL | Permanent Split Capacitor Motor | 265 W | 70 dB(A) | 1645 CFM | 46.06 m³/min | 4 Wire Leads | -20 ░C | 70 °C | 11 lbs | 5 kg | 548 Pa | 2.2 in H2O |
 Mechatronics Fan Group | Aluminum | 2.26 A | Aluminum | 167.3 mm | Motorized Impellers | 1600 RPM | Ball | 115 VAC | 360 mm | Round | CE cUL TUV UL | Permanent Split Capacitor Motor | 270 W | 70 dB(A) | 1645 CFM | 46.06 m³/min | 4 Wire Leads | -20 ░C | 70 °C | 11 lbs | 5 kg | 548 Pa | 2.2 in H2O |
