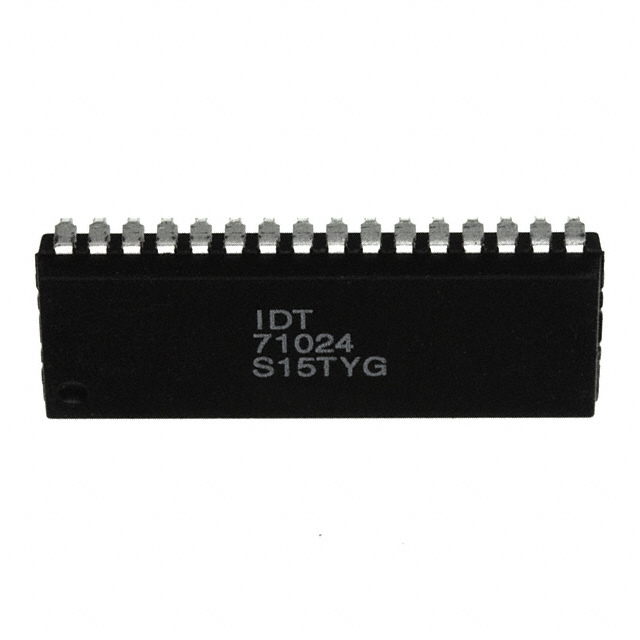

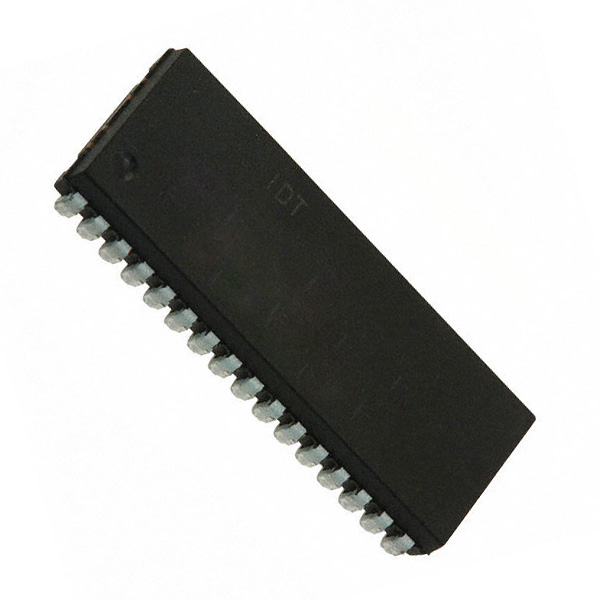

71024S Series

5.0V 128K x 8 Asynchronous Static RAM with Corner Power & Ground Pinout

Manufacturer: Renesas Electronics Corporation

Catalog

5.0V 128K x 8 Asynchronous Static RAM with Corner Power & Ground Pinout

Part	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Memory Interface	Supplier Device Package	Mounting Type	Memory Format	Write Cycle Time - Word, Page	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Memory Organization	Technology	Access Time	Package / Case	Package / Case	Package / Case	Package / Case
Renesas Electronics Corporation 71024S25TYG	70 °C	0 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	25 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	25 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S25TYGI	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	25 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	25 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S12YG	70 °C	0 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	12 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	12 ns		32-BSOJ	10.16 mm	10.16 mm
Renesas Electronics Corporation 71024S15TYGI	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	15 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	15 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S12TYG8	70 °C	0 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	12 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	12 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S20YGI8	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	20 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	20 ns		32-BSOJ	10.16 mm	10.16 mm
Renesas Electronics Corporation 71024S25TYGI8	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	25 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	25 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S20TYGI8	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	20 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	20 ns	0.3 in 7.62 mm	32-BSOJ
Renesas Electronics Corporation 71024S12YGI8	85 °C	-40 °C	1 Mbit	Parallel	32-SOJ	Surface Mount	SRAM	12 ns	4.5 V	5.5 V	Volatile	128K x 8	SRAM - Asynchronous	12 ns		32-BSOJ	10.16 mm	10.16 mm
Renesas Electronics Corporation 71024S20YG8/2901			1 Mbit				SRAM

Catalog

5.0V 128K x 8 Asynchronous Static RAM with Corner Power & Ground Pinout

Description

The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.
