L177SDB25 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 25POS VERT SLDR

Part	Contact Form	Color	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Positions	Mounting Type	Connector Type	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Material Flammability Rating	Termination	Connector Style	Number of Rows [custom]	Features	Backset Spacing	Backset Spacing	Wire Gauge

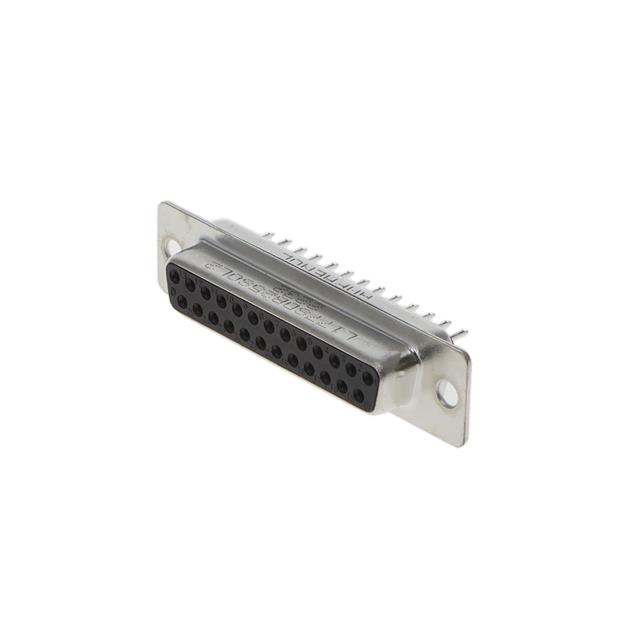

Amphenol ICC (Commercial Products) L177SDB25SOL2	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Housing/Shell (Unthreaded)	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2
Amphenol ICC (Commercial Products) L177SDB25SA4CH4F48	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Right Angle Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	4-40 Mating Side Female Screwlock	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2	Board Lock	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) L177SDB25S1ACH4F	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Right Angle Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	4-40 Mating Side Female Screwlock	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2	Board Lock	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L177SDB25SVF	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Free Hanging (In-Line)	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	4-40 Mating Side Female Screwlock	Gold	B DB	3	UL94 V-0		D-Sub	2
Amphenol ICC (Commercial Products) L177SDB25SOL2G	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Housing/Shell (Unthreaded)	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2
Amphenol ICC (Commercial Products) L177SDB25SA4CH4R	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Right Angle Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Board Side (4-40)	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2	Board Lock	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) L177SDB25S1ACH3R	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Right Angle Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Board Side (M3)	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2	Board Lock	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L177SDB25SVFM	Stamped	Black	Brass	250 V	-55 C	105 ░C	Thermoplastic Glass Filled	25	Free Hanging (In-Line)	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Mating Side Female Screwlock (M3)	Gold	B DB	3	UL94 V-0		D-Sub	2				20 AWG
Amphenol ICC (Commercial Products) L177SDB25SR702	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Free Hanging (In-Line)	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Housing/Shell (Unthreaded)	Gold	B DB	3	UL94 V-0		D-Sub	2
Amphenol ICC (Commercial Products) L177SDB25S1ACH4R	Stamped	Black	Phosphor Bronze	250 V	-55 C	125 °C	Thermoplastic Glass Filled	25	Right Angle Through Hole	Receptacle Female Sockets	3 A	Signal	0.38 µm	15 µin	Board Side (4-40)	Gold	B DB	3	UL94 V-0	Solder	D-Sub	2	Board Lock	10.3 mm	0.406 in
