L4CA0612LR005F-A Series

4T L4CA0612 1W 50ppm 5 mOhm Â±1.0% Auto

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4T L4CA0612 1W 50ppm 5 mOhm Â±1.0% Auto

Part	Number of Terminations	Supplier Device Package	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Tolerance	Package / Case	Resistance	Features
Littelfuse/Commercial Vehicle Products L4CA0612LR005FNR-A	4	0612	1 W	0.126 "	0.061 in	1.55 mm	3.2 mm	155 °C	-55 °C	0.7 mm	0.028 in	50 ppm/°C	1 %	Wide 1206 (3216 Metric) 0612	5 mOhms	Current Sense High Voltage

Catalog

4T L4CA0612 1W 50ppm 5 mOhm Â±1.0% Auto

Key Features

• Separate voltage sensing terminals

• Ceramic substrate

• AEC-Q200 qualified

Description

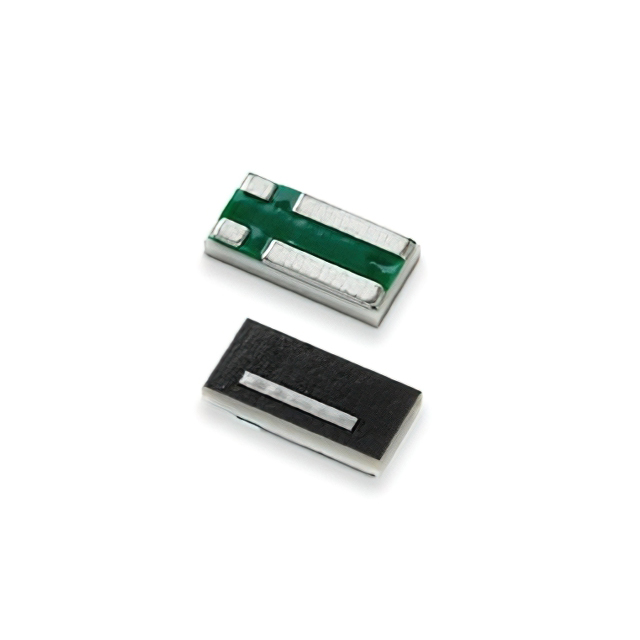

Littelfuse L4CA Series Kelvin sensing, low resistance, high power chip resistors exhibit excellent performance in resistance, noise performance, surface heat distribution, and have a lower surface temperature.
