ACPSA04 Series

Catalog

DISPLAY 14SEG 0.4" SGL RED 16SMD

Part	Wavelength - Peak	Millicandela Rating	Power Dissipation (Max) [Max]	Color	Display Type	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Current - Test	Common Pin	Power Dissipation (Max)
Kingbright ACPSA04-41SRWA	660 nm	15 mcd	75 mw	Red	14-Segment Alphanumeric	1	10.16 mm	0.4 in	1.85 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode

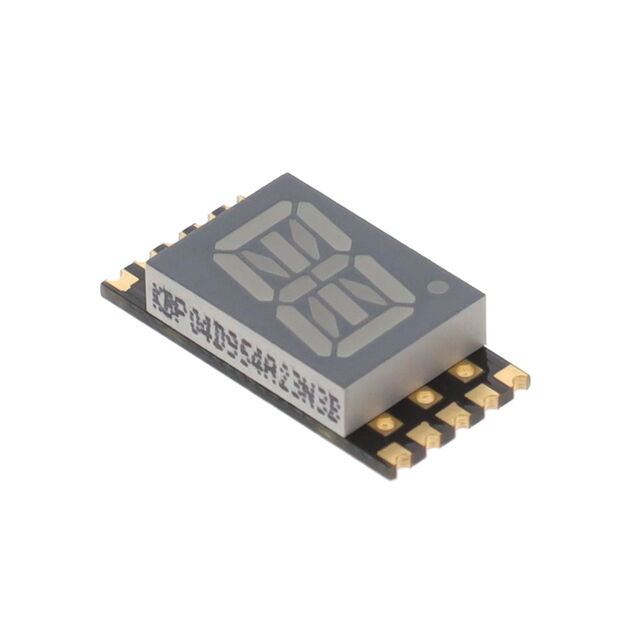

Kingbright ACPSA04-41CGKWA		11 mcd	75 mw	Green	14-Segment Alphanumeric	1	10.16 mm	0.4 in	2.1 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode

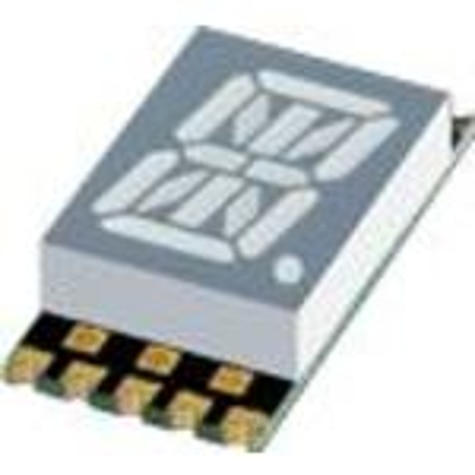

Kingbright ACPSA04-41SEKWA	610 nm	44 mcd	75 mw		14-Segment Alphanumeric	1	10.16 mm	0.4 in	2.1 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode
Kingbright ACPSA04-41SGWA	565 nm	2.9 mcd	62.5 mW	Green	14-Segment Alphanumeric	1	10.16 mm	0.4 in	2.2 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode

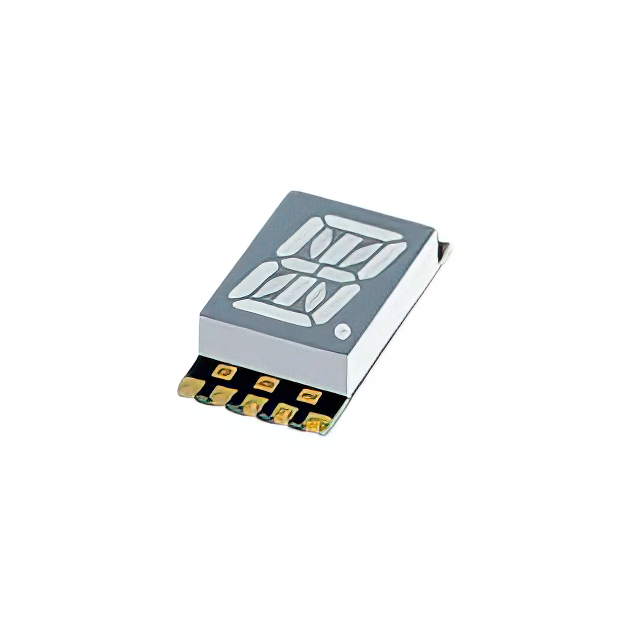

Kingbright ACPSA04-41SURKWA	650 nm	36 mcd	75 mw	Red	14-Segment Alphanumeric	1	10.16 mm	0.4 in	1.95 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode
Kingbright ACPSA04-41SYKWA	590 nm	46 mcd	75 mw	Yellow	14-Segment Alphanumeric	1	10.16 mm	0.4 in	2 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode
Kingbright ACPSA04-41PBWA/A	468 nm			Blue	14-Segment Alphanumeric	1	10.16 mm	0.4 in	3.2 V	0.366 in	13 mm	0.148 in	9.3 mm	0.512 in	3.75 mm	16-SMD No Lead	20 mA	Common Anode	120 mW
