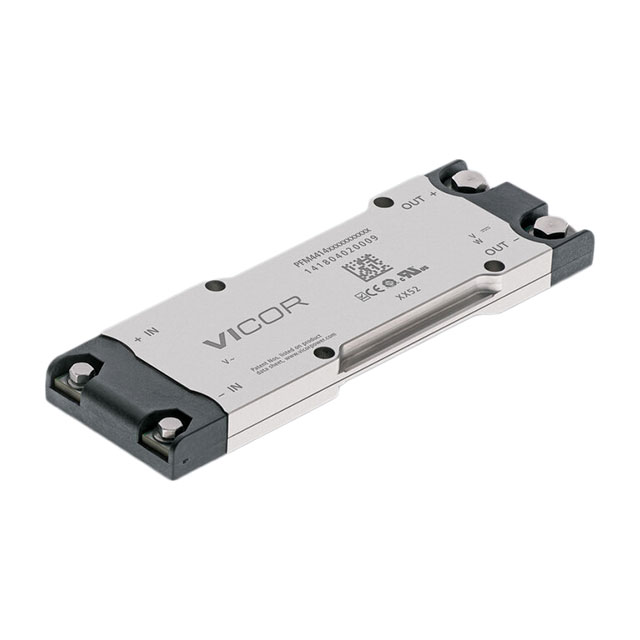

PFM4414 Series

Catalog

AC/DC CONVERTER 175V 48V 400W

Part	Voltage - Output 1	Number of Outputs	Features	Voltage - Isolation	Type	Power (Watts)	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output 1	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Line Regulation	Load Regulation	Current - Output (Max) [Max]	Package / Case	Standard Number
Vicor Corporation PFM4414BB6M48D0TA4
Vicor Corporation PFM4414BB6M24D0TA4
Vicor Corporation PFM4414VB6M48D0C00	48 V	1	External Rectification Required PFC Universal Input	4.242 kV	Enclosed	400 W	92 %	-20 ░C	100 °C	CE cTUVus cURus	8.33 A	Chassis Mount	ITE (Commercial)	1.4 in	35.5 mm	0.37 in	4.35 "	9.3 mm	110.6 mm
Vicor Corporation PFM4414BB6M48D0C08	48 V	1	External Rectification Required PFC Universal Input		Enclosed	400 W	92 %	-20 °C	100 °C	CE cTUVus cURus		Through Hole	ITE (Commercial)	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	48.08 g	0.106 lb	3 %	3 %	8.33 A	4-DIP Module
Vicor Corporation PFM4414BB6M48D0TA8
Vicor Corporation PFM4414BB6M48D0TB4
Vicor Corporation PFM4414BB6M24D0CA8
Vicor Corporation PFM4414VB6M48D0TA0	48 V	1	PFC Universal Input	2.121 kV	Enclosed	400 W	92.4 %	-40 °C	100 °C	CE cTUVus cURus	8.33 A	Chassis Mount	ITE (Commercial)	1.39 in	35.3 mm	0.38 in	4.35 "	9.7 mm	110.5 mm							60950-1
Vicor Corporation PFM4414BB6M24D0T08	24 V	1	External Rectification Required PFC Universal Input		Enclosed	400 W	90 %	-40 °C	100 °C	CE cTUVus cURus		Through Hole	ITE (Commercial)	1.4 in	35.5 mm	0.37 in	4.44 "	9.3 mm	112.8 mm	48.08 g	0.106 lb	3 %	3 %	16.67 A	4-DIP Module
Vicor Corporation PFM4414BB6M48D0CB4
