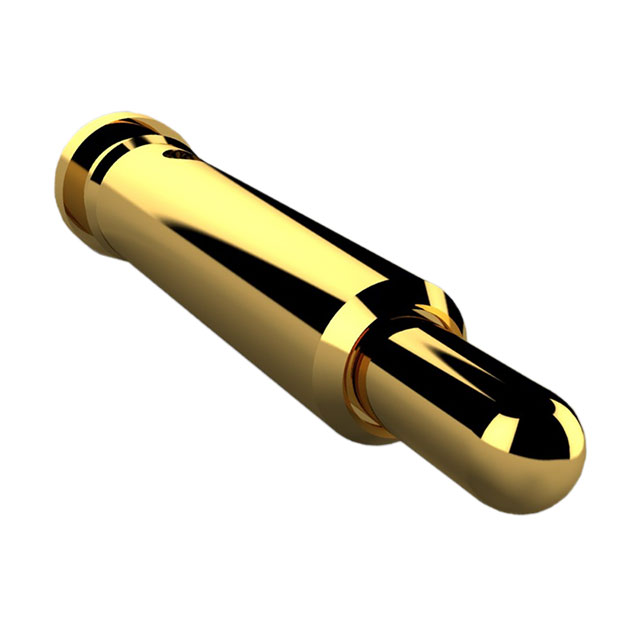

90245 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Contact Type | Minimum Working Height | Minimum Working Height | Contact Finish | Current Rating (Amps) | Operating Force - Initial | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | Brass Alloy | Surface Mount | 0.038 in | 0.96 mm | 9.4 mm | 0.37 in | 66.28 gf | 0.072 in | 1.83 mm | Sleeve & Plunger (Pogo Pins) | 7.4 mm | 0.291 in | Gold | 2 A | 25.49 gf | 40000 | 0.25 Ám | 10 Áin |
