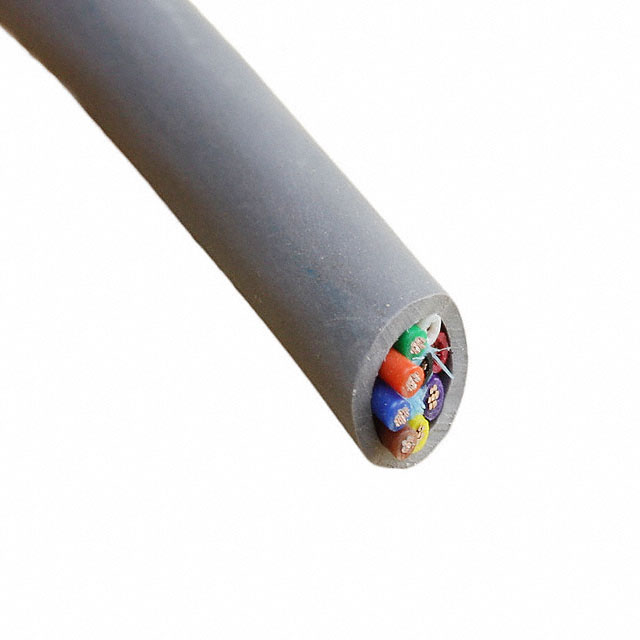

6345 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 9 CONDUCTOR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Shield Type | Jacket Color | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Voltage | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Ratings | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | Slate | Copper Tinned | 80 °C | -20 ░C | 9 | 300 VDC | 100 ft | 30.5 m | 0.813 mm | 0.032 in | Multi-Conductor | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.272 in | 6.91 mm | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Drain Wire | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | Slate | Copper Tinned | 80 °C | -20 ░C | 9 | 300 VDC | 0.813 mm | 0.032 in | Multi-Conductor | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 0.272 in | 6.91 mm | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Drain Wire | 304.8 m | 1000 ft |
