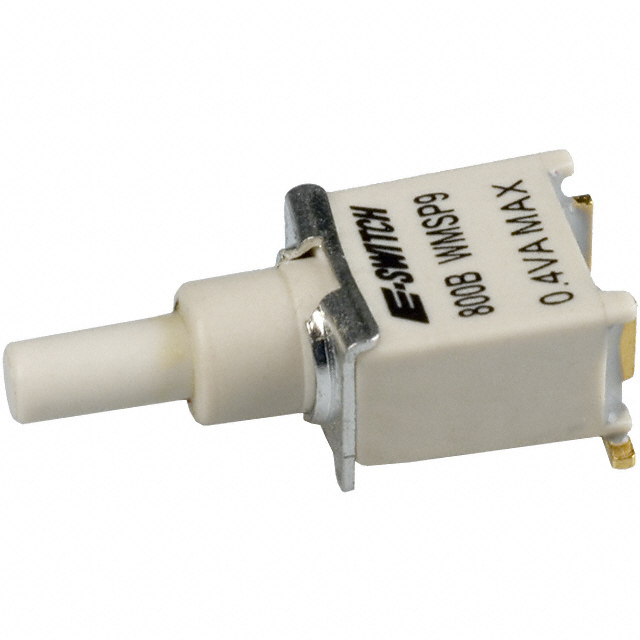

800BWSP9 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSH SPST-NO 3A 120V
| Part | Electrical Life | Termination Style | Features | Switch Function | Current Rating (Amps) | Actuator Marking | Circuit | Mounting Type | Actuator Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Voltage Rating - AC | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | Gull Wing | Epoxy Sealed Terminals | Off-Mom | 3 A | No Marking | SPST-NO | Right Angle Surface Mount | Plunger Round | 28 V | 85 °C | -30 ░C | White | 120 V | Standard |
 E-Switch | 50000 Cycles | Gull Wing | Epoxy Sealed Terminals | Off-Mom | 0.4 VA | No Marking | SPST-NO | Right Angle Surface Mount | Plunger Round | 20 V | 85 °C | -30 ░C | White | 20 V | Standard |
