147046 Series

Catalog

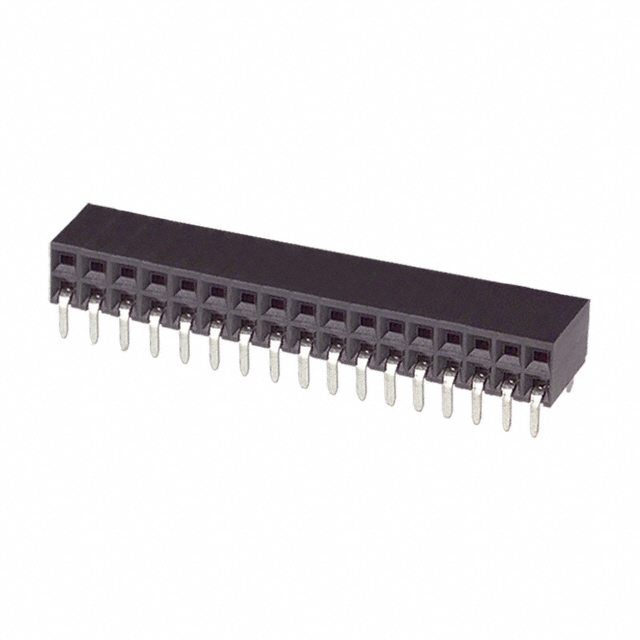

CONN RCPT 34POS 0.1 GOLD PCB R/A

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Style	Mounting Type	Insulation Color	Contact Finish - Mating	Connector Type	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post
TE Connectivity AMP Connectors 5-147046-1	Phosphor Bronze	Polyester Glass Filled	3.81 Ám	Square	26	Board to Board Cable	Right Angle Through Hole	Black	Gold	Receptacle	2	0.238 "	6.05 mm	34	0.76 Ám	30 Áin	0.1 "	2.54 mm	0.1 in	2.54 mm	105 ░C	-65 ░C	Solder	Push-Pull	Female Socket	0.115 in	2.92 mm	Tin
