76020 Series
Manufacturer: Molex
Beta
⌘K
GBX I-TRAC RIGHT-ANGLE RECEPTACLE MODULE, 1.85MM BY 3.70MM PITCH, RIGHT GUIDE 7 ROW, 6 COLUMNS, 84 CIRCUITS, LEAD-FREE
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Columns | Termination | Number of Positions Loaded | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] | Connector Type | Connector Style | Contact Finish | Connector Usage | Color | Mounting Type | Number of Rows [custom] | Number of Columns [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 120 VDC | -55 C | 80 °C | UL94 V-0 | 6 | Press-Fit | All | 30 Áin | 0.76 Ám | 84 | Receptacle Female Sockets | I-Trac Guide Right | Gold | Coplanar Daughtercard | Black | Right Angle Through Hole | 7 | ||

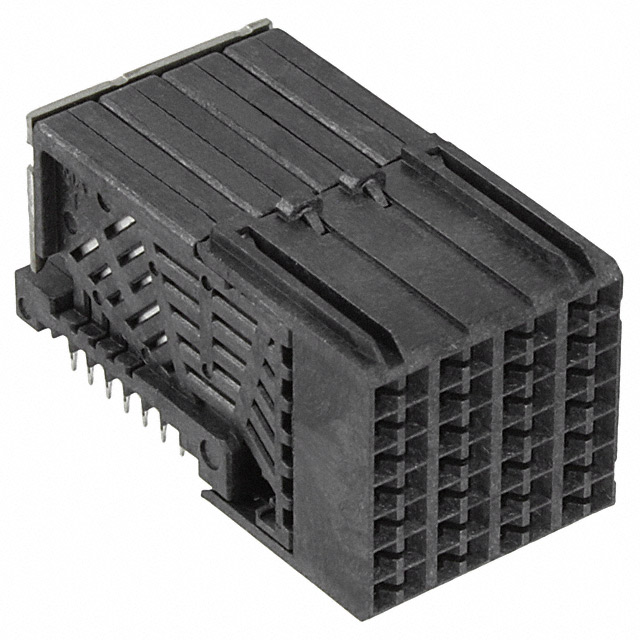

 Molex | 120 VDC | -55 C | 80 °C | UL94 V-0 | Press-Fit | All | 30 Áin | 0.76 Ám | Receptacle Female Sockets | I-Trac | Gold | Coplanar Daughtercard | Black | Board Edge Right Angle Through Hole | 7 | 4 | 56 | ||

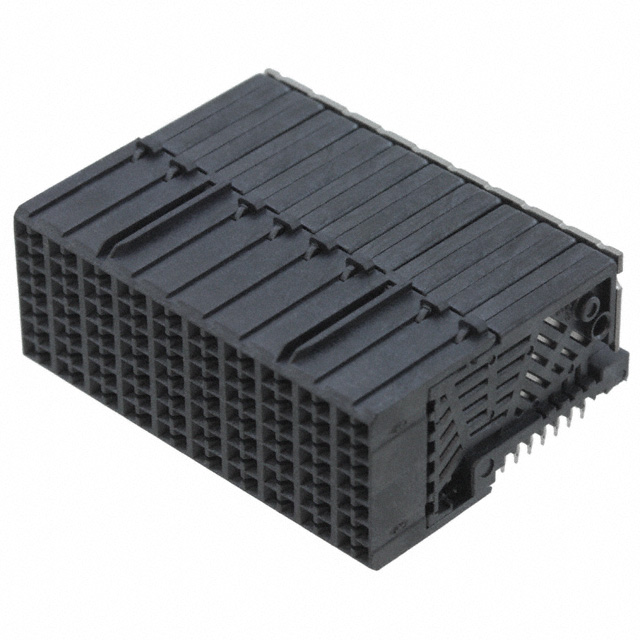

 Molex | 120 VDC | -55 C | 80 °C | UL94 V-0 | 10 | Press-Fit | All | 30 Áin | 0.76 Ám | Receptacle Female Sockets | I-Trac | Gold | Coplanar Daughtercard | Black | Board Edge Right Angle Through Hole | 7 | 140 |
