A915AY Series
Manufacturer: Murata Electronics
Beta
⌘K

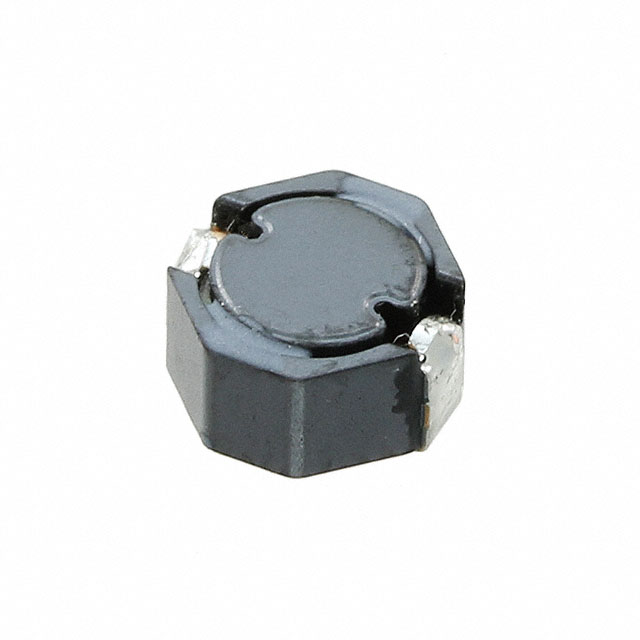

INDUCTOR, 10UH, SEMISHIELDED, 1.41A ROHS COMPLIANT: YES
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Current - Saturation (Isat) | Package / Case | Inductance | Current Rating (Amps) | Material - Core | Type | DC Resistance (DCR) [Max] | Shielding | Inductance Frequency - Test | Tolerance | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.197 in | 0.197 " | 5 mm | 5 mm | 0.118 " | 3 mm | 2020 | 85 °C | -40 C | 1.33 A | 2020 (5050 Metric) | 10 µH | 1.41 A | Ferrite | Drum Core Wirewound | 90 mOhm | Shielded | 100 kHz | 20 % | Surface Mount | |
 Murata Electronics | 0.197 in | 0.197 " | 5 mm | 5 mm | 0.118 " | 3 mm | 2020 | 85 °C | -40 C | 2.92 A | 2020 (5050 Metric) | 2 µH | 2.64 A | Ferrite | Drum Core Wirewound | Shielded | 100 kHz | 20 % | Surface Mount | 27 mOhm | |
 Murata Electronics | 0.197 in | 0.197 " | 5 mm | 5 mm | 0.118 " | 3 mm | 2020 | 85 °C | -40 C | 620 mA | 2020 (5050 Metric) | 47 µH | 0.64 A | Ferrite | Drum Core Wirewound | 352 mOhm | Shielded | 100 kHz | 20 % | Surface Mount | |
 Murata Electronics | 0.197 in | 0.197 " | 5 mm | 5 mm | 0.118 " | 3 mm | 2020 | 85 °C | -40 C | 430 mA | 2020 (5050 Metric) | 100 µH | 0.44 A | Ferrite | Drum Core Wirewound | 801 mOhm | Shielded | 100 kHz | 20 % | Surface Mount |
