146179 Series

Manufacturer: Molex

Catalog

POWERLIFE WIRELESS CHARGING COIL, TRANSMIT AND RECEIVE, LOW FREQUENCY, WEARABLE, 2.5W

Part	Function	Inductance	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Type	Tolerance	DC Resistance (DCR)	Q @ Freq	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]

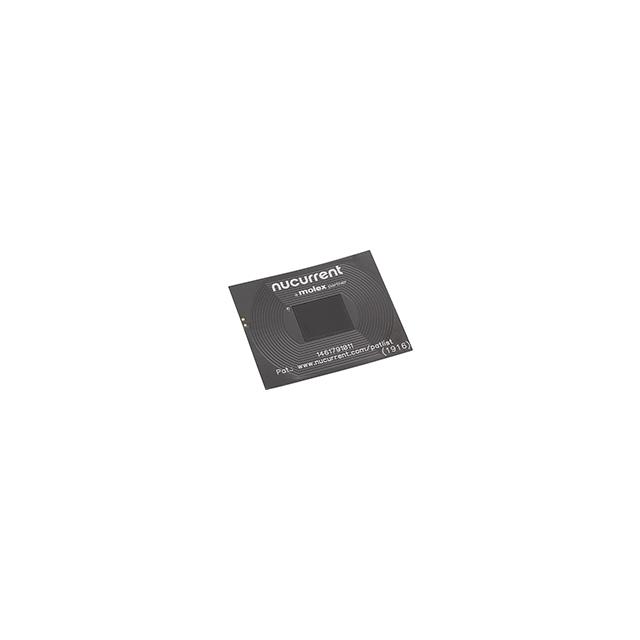

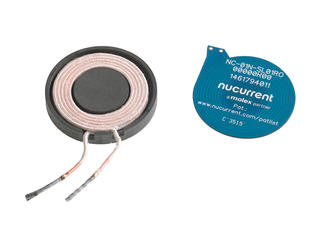

Molex 1461794011	Receiver Transmitter	5.6 µH 9.6 µH	27 mm	3.7 mm	0.15 in	1.06 in	2 Coil 1 Layer	2 %	38 mOhm 550 mOhm	18 160
Molex 1461798001	Receiver	2.9 µH						2 %	120 mOhm	6.78 MHz 160	1 Layer	72.8 mm	0.04 in	2.24 in	56.8 mm	2.86 in	1 mm
Molex 1461791001	Receiver	11.6 µH						2 %	520 mOhm		1 Layer	31 mm	0.02 "	1.69 in	43 mm	1.22 in	0.5 mm	23	200 kHz
Molex 1461790001	Receiver	17.3 µH						2 %	450 mOhm		1 Layer		0.02 "	1.69 in	43 mm	1.97 in				50 mm	0.5 mm
Molex 1461794001	Receiver	8.9 µH					2 Coil 1 Layer	2 %	350 mOhm	25 200 kHz			0.02 "	2.58 in	65.5 mm	1.91 "				48.4 mm	0.5 mm
Molex 1461791011	Receiver	9.9 µH					2 Coil 1 Layer	2 %	390 mOhm				0.02 "	1.58 inches	40 mm	1.85 in		23	200 kHz	47 mm	0.5 mm
Molex 1461798011	Receiver	2.6 µH	26.5 mm			1.04 in		2 %	245 mOhm		1 Layer		0.02 "								0.5 mm

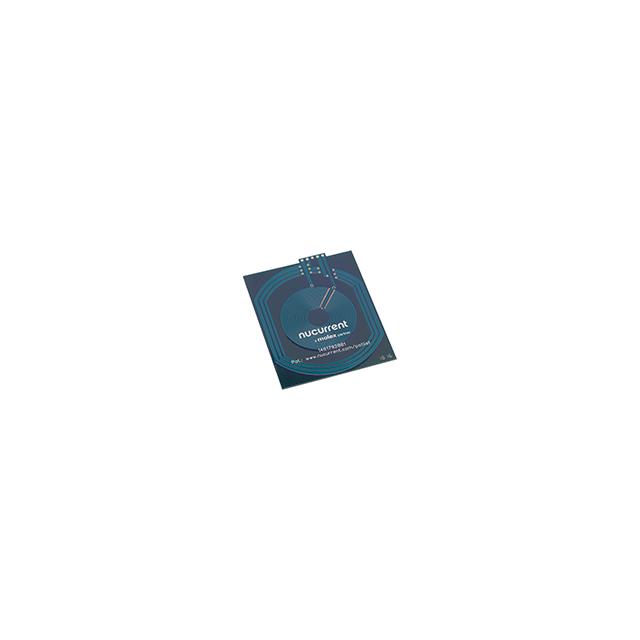

Molex 1461792001	Receiver	10.6 µH					2 Coil 1 Layer	2 %	190 mOhm	24 200 kHz			0.06 "	2.55 "	64.7 mm	2.11 in				53.6 mm	1.4 mm

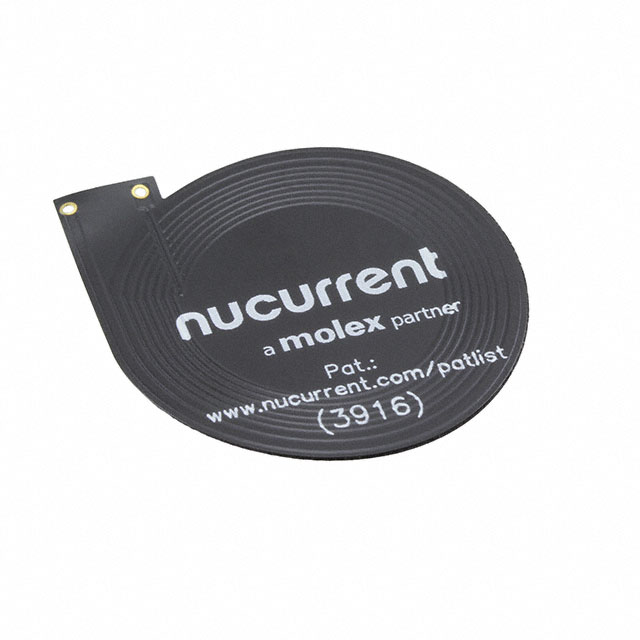

Molex 1461798021	Receiver	4 µH	35 mm			1.38 in		2 %	235 mOhm	6.78 MHz 115	1 Layer		0.02 "									0.6 mm
