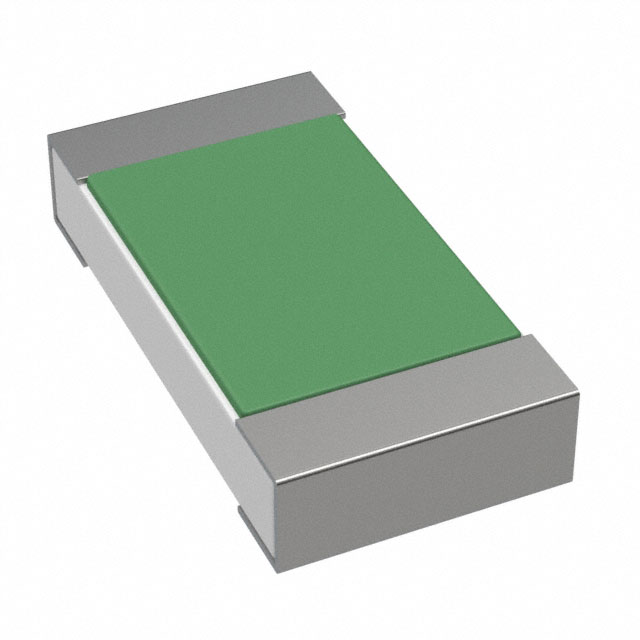

RL-0816 Series

Catalog

RES 1% 1/8W 0603

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Features	Package / Case	Package / Case	Number of Terminations [custom]	Tolerance	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]
Delta Electronics/Cyntec RL-0816-3-R075-FNH	0.55 mm	0.022 in	0.125 W	0.125 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	75 mOhms	Current Sense	1608 Metric	0603	2	1 %	Metal Film
Delta Electronics/Cyntec RL-0816-F-R050-FNH	0.55 mm	0.022 in	0.333 W	0.3333333333333333 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	0.05 Ohms		1608 Metric	0603	2	1 %	Metal Film	250 ppm/°C	0
Delta Electronics/Cyntec RL-0816-F-1R00-FNH	0.55 mm	0.022 in	0.333 W	0.3333333333333333 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	1 Ohms		1608 Metric	0603	2	1 %	Metal Film	250 ppm/°C	0
Delta Electronics/Cyntec RL-0816-4-R050-FNH	0.55 mm	0.022 in	0.5 W	0.5 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	0.05 Ohms	Current Sense	1608 Metric	0603	2	1 %	Metal Film	250 ppm/°C	0
Delta Electronics/Cyntec RL-0816-F-R100-FNH	0.55 mm	0.022 in	0.333 W	0.3333333333333333 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	0.1 Ohms		1608 Metric	0603	2	1 %	Metal Film	250 ppm/°C	0
Delta Electronics/Cyntec RL-0816-F-R010-FNH	0.55 mm	0.022 in	0.333 W	0.3333333333333333 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	10 mOhms		1608 Metric	0603	2	1 %	Metal Film	350 ppm/°C	0
Delta Electronics/Cyntec RL-0816-4-R010-FNH	0.55 mm	0.022 in	0.5 W	0.5 W	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	10 mOhms	Current Sense	1608 Metric	0603	2	1 %	Metal Film	350 ppm/°C	0
