K30F1C-P Series
Manufacturer: ODU
Beta
⌘K

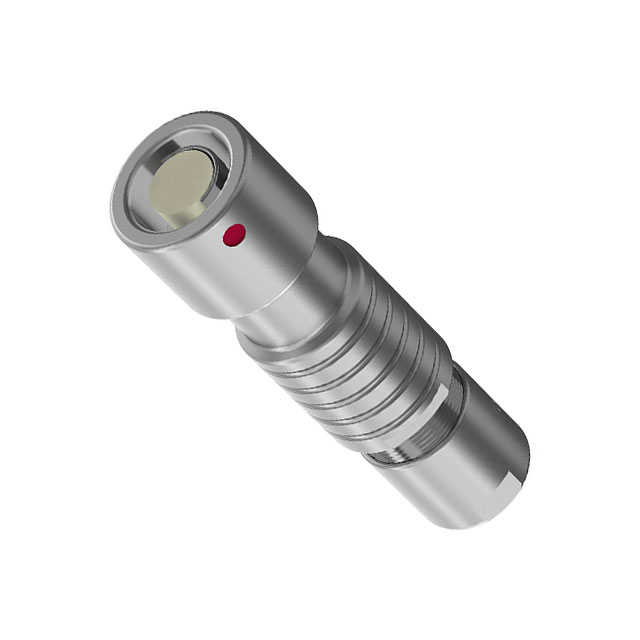

ODU MINI-SNAP INLINE RECEPTACLE,
| Part | Fastening Type | Orientation [custom] | Insert Material | Ingress Protection | Contact Material | Connector Type | Current Rating (Amps) | Color | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating | Material Flammability Rating | Shell Material | Shell Size - Insert [custom] | Shielding | Number of Positions | Applications | Mounting Type | Contact Finish - Mating | Shell Finish | Primary Material | Features | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.177 in | 5 mm | 4.5 mm | 0.197 in | 500 V | UL94 V-0 | Brass | 0 | Unshielded | 2 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.079 in 2 mm | 0.098 in 2.5 mm | 400 V | UL94 V-0 | Brass | 0 | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | ||||
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.039 in | 1.5 mm | 1 mm | 0.059 in | 400 V | UL94 V-0 | Brass | 0 | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | ||
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 4 A | Silver | 0.138 " | 4 mm | 3.5 mm | 0.157 in | UL94 V-0 | Brass | 0 | 7 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |||
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.059 " | 2 mm | 1.5 mm | 0.079 " | 500 V | UL94 V-0 | Brass | 0 | Unshielded | 2 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.059 " | 2 mm | 1.5 mm | 0.079 " | 300 VDC | UL94 V-0 | Brass | 0 | Unshielded | 4 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.118 in | 3.5 mm | 3 mm | 0.138 in | 400 V | UL94 V-0 | Brass | 0 | Unshielded | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | ||
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.138 " | 4 mm | 3.5 mm | 0.157 in | 500 V | UL94 V-0 | Brass | 0 | Unshielded | 2 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.098 in | 3 mm | 2.5 mm | 0.118 " | 500 V | UL94 V-0 | Brass | 0 | Unshielded | 2 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C | |
Push-Pull | 1 | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | Receptacle Female Sockets | 7.5 A | Silver | 0.039 in | 1.5 mm | 1 mm | 0.059 in | 300 VDC | UL94 V-0 | Brass | 0 | Unshielded | 4 | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | Gold | Chrome over Nickel | Metal | Backshell | Brass Chrome over Nickel | 120 °C | -40 C |
