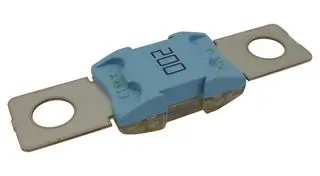

142.5395.6202 Series

Fuse - BF2 58V / 1000A DC, 200A 200 pc

Catalog

Fuse - BF2 58V / 1000A DC, 200A 200 pc

Part	Color	Mounting Type	Response Time	DC Cold Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Fuse Type	Current Rating (Amps)	Package / Case	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 142.5395.6202	Blue	Bolt Mount	Slow Blow	0.00034 Ohms	29 mm	18.8 mm	0.382 "	1.142 inches	9.7 mm	0.74 in	Automotive	200 A	Auto Link	1 kA	288000	58 VDC

Fuse - BF2 58V / 1000A DC, 200A 200 pc

• Blue housing indicates 200 A rating

• Tin-plated copper alloy terminals

• Refers to ISO 8820-5:2015

• UL Recognized in Canada and United States as a UL Special Purpose Fuse

This 200 A BF2 58V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
