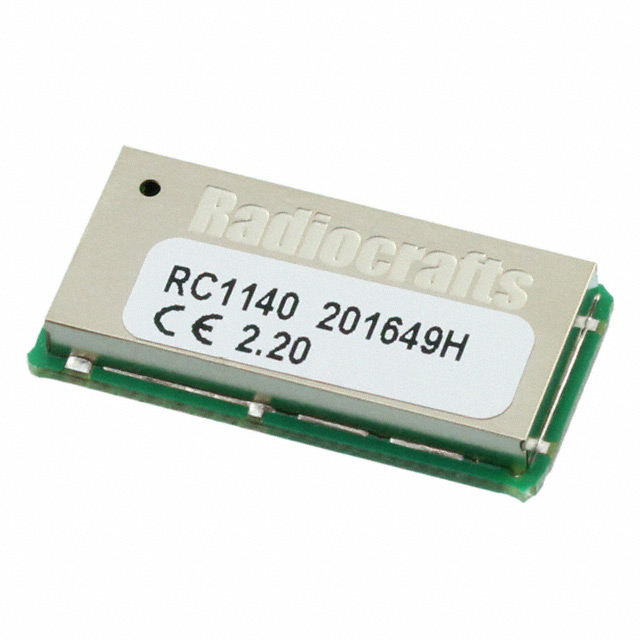

RC1140 Series
Manufacturer: Radiocrafts AS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD ISM<1GHZ CAST SMD
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Operating Temperature (Min) | Operating Temperature (Max) | RF Family/Standard | Sensitivity | Protocol | Power - Output | Mounting Type | Current - Transmitting | Utilized IC / Part | Package / Case | Frequency (Min) | Frequency (Max) | Serial Interfaces | Antenna Type | Data Rate | Current - Receiving | Modulation | Frequency | Type | Contents | Interface | Modulation or Protocol | Function | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiocrafts AS | 3.6 V | 2 V | -40 °C | 85 °C | General ISM < 1GHz | -110 dBm | RC232 | 10 dBm | Surface Mount | 35 mA | CC1110 | Module | 433 MHz | 434 MHz | UART | Antenna Not Included Castellation | 100 kbps | 24 mA | GFSK | 433 MHz | ||||||

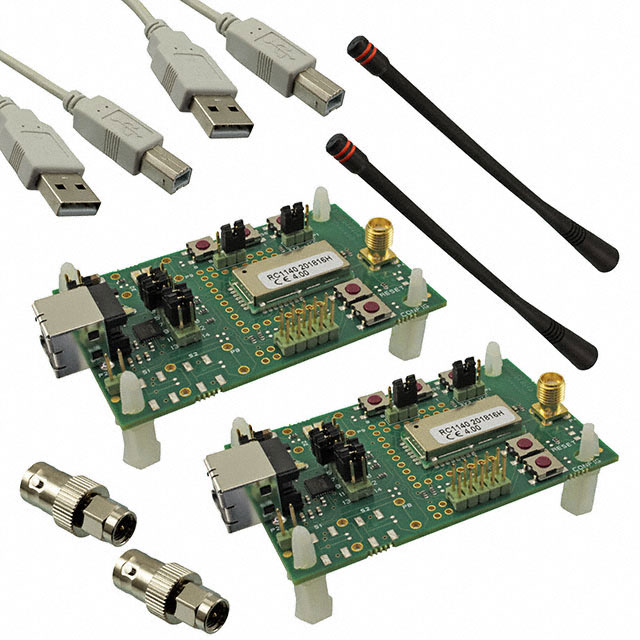

 Radiocrafts AS | RC1140-RC232 | 433 MHz | Transceiver | Board | ||||||||||||||||||||||
 Radiocrafts AS | 433 MHz | 434 MHz | USB | 802.15.4 Zigbee™ | Transceiver ZigBee™ | General Purpose | ||||||||||||||||||||
 Radiocrafts AS | 433 MHz | USB | 802.15.4 Zigbee™ | Transceiver ZigBee™ | General Purpose |
